- Country
- Italy
- Manufacturer / Brand
- Magnadyne Radio; Torino
- Year
- 1952 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 121207
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 471 kHz; 2 AF stage(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 140; 160; 175; 230 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
- Material
- Wooden case
- from Radiomuseum.org

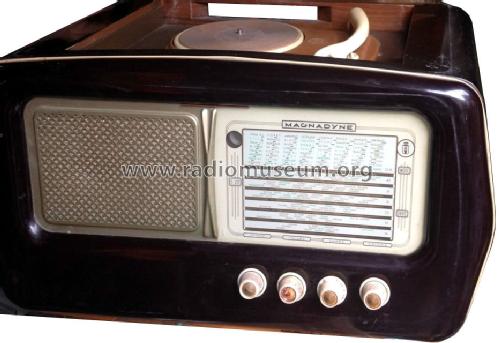

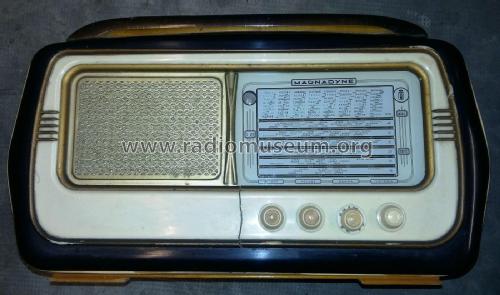

- Model: S217 - Magnadyne Radio; Torino
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 620 x 360 x 340 mm / 24.4 x 14.2 x 13.4 inch
- Notes
-

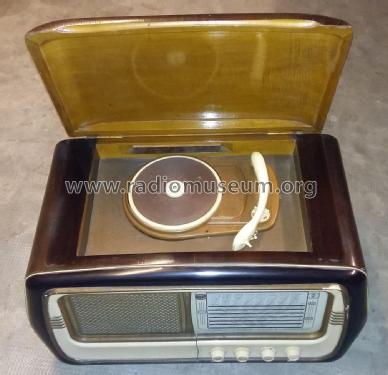

Giradischi Perpetuum mod. PE 3420, 3 velocità (33, 45,78 giri/min.). Testina con doppia puntina per 78 giri e microsolco.
Controllo di tono.
Onde Corte e Cortissime in 5 gamme: 16, 19, 25, 31, 41 e 49 metri.
- Mentioned in
- -- Collector info (Sammler)
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
