S22; Magnadyne Radio; (ID = 2341508) Radio

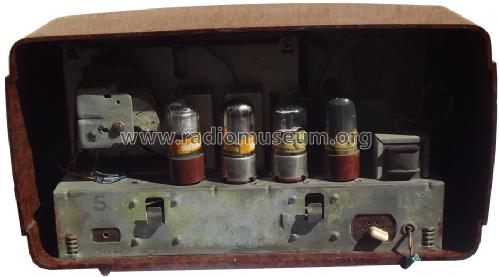

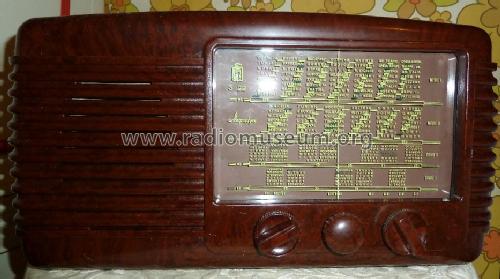

Magnadyne Radio;: S22 [Radio] ID = 2341508 1400x775
Select picture or schematic to display from thumbnails on the right and click for download.
For model S22, Magnadyne Radio; Torino

Country:  Italy
Manufacturer / Brand:  Magnadyne Radio; Torino
Year: 1949–1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6TE8 6SK7 6SQ7 6V6 6X5
Main principle Superheterodyne (common); ZF/IF 471 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 175; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 4.5 W (unknown quality)
from Radiomuseum.org Model: S22 - Magnadyne Radio; Torino
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 385 x 210 x 160 mm / 15.2 x 8.3 x 6.3 inch
Notes

Gamme d'onda: 2 di onde medie (onde medie espanse), 2 di onde corte Valvole serie GT.
Glass tubular (GT-suffix) tubes used.

Autotrasformatore: Telaio collegato alla rete elettrica. Non tutti i casi sono dichiarati poichè spesso chi propone il modello non lo può sapere.

Price in first year of sale 28'000.00 ITL
Source of data Guida Pratica Antique Radio III (2000)
Mentioned in Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 127)

Model page created by Matteo Vannini. See "Data change" for further contributors.
