S23

S23; Magnadyne Radio; (ID = 260574) Radio
S23; Magnadyne Radio; (ID = 2036699) Radio S23; Magnadyne Radio; (ID = 2036700) Radio
S23; Magnadyne Radio; (ID = 2036701) Radio S23; Magnadyne Radio; (ID = 2036702) Radio
S23; Magnadyne Radio; (ID = 2036703) Radio S23; Magnadyne Radio; (ID = 297426) Radio
S23; Magnadyne Radio; (ID = 297431) Radio S23; Magnadyne Radio; (ID = 297430) Radio
S23; Magnadyne Radio; (ID = 297429) Radio S23; Magnadyne Radio; (ID = 820391) Radio
Use red slider bar for more.

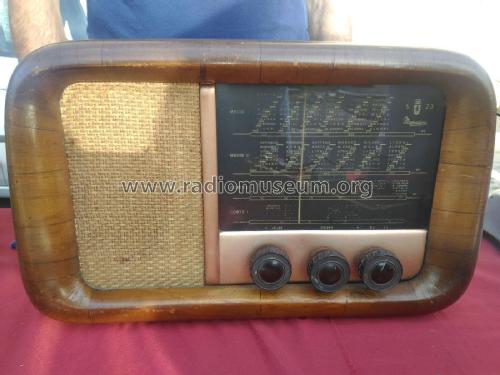

S23; Magnadyne Radio; (ID = 2036699) Radio
Magnadyne Radio;: S23 [Radio] ID = 2036699 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model S23, Magnadyne Radio; Torino

Country:  Italy
Manufacturer / Brand:  Magnadyne Radio; Torino
Year: 1950 ? Category: Broadcast Receiver - or past WW2 Tuner

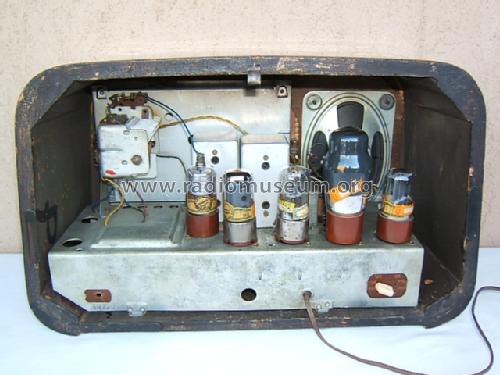

Valves / Tubes 5: 6TE8 6SK7 6SQ7 6V6 6X5
Main principle Superheterodyne (common); ZF/IF 471 kHz
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 175; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3 W (unknown quality)
from Radiomuseum.org Model: S23 - Magnadyne Radio; Torino
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Literature/Schematics (1) Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 127)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
