S24

S24; Magnadyne Radio; (ID = 260576) Radio
S24; Magnadyne Radio; (ID = 990245) Radio S24; Magnadyne Radio; (ID = 990246) Radio

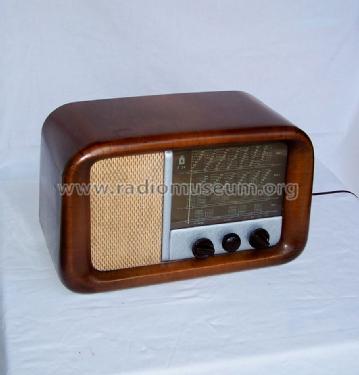

S24; Magnadyne Radio; (ID = 1280690) Radio S24; Magnadyne Radio; (ID = 1280691) Radio

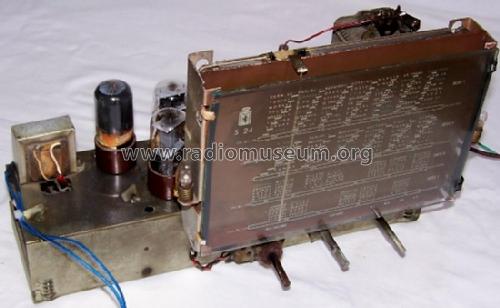

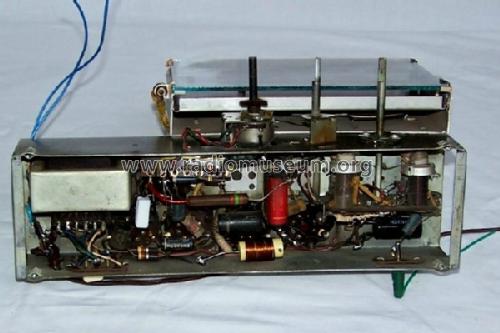

S24; Magnadyne Radio; (ID = 1280693) Radio S24; Magnadyne Radio; (ID = 1280696) Radio
S24; Magnadyne Radio; (ID = 1833738) Radio
Use red slider bar for more.
S24; Magnadyne Radio; (ID = 990245) Radio
Magnadyne Radio;: S24 [Radio] ID = 990245 900x648
Select picture or schematic to display from thumbnails on the right and click for download.
For model S24, Magnadyne Radio; Torino

Country:  Italy
Manufacturer / Brand:  Magnadyne Radio; Torino
Year: 1950 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6TE8 6SK7 6SQ7 6V6 6X5
Main principle Superheterodyne (common); ZF/IF 471 kHz
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 175; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3 W (unknown quality)
from Radiomuseum.org Model: S24 - Magnadyne Radio; Torino
Literature/Schematics (1) Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 127)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
