• Year
  • 1950/1951
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 138577

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 471 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 140; 160; 175; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 1.5 W (undistorted)
  • Material
  • Wooden case
  • from Radiomuseum.org

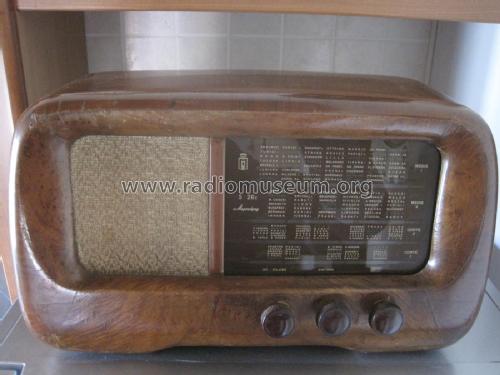

  • Model: S26 - Magnadyne Radio; Torino
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 430 x 270 x 180 mm / 16.9 x 10.6 x 7.1 inch
  • Notes
  • Gamme d'onda: 2 medie e 2 corte.
    Wave bands: 2x BC, 2x SW.

    Caution: Hot chassis, not isolated from mains!

  • Mentioned in
  • -- Original prospect or advert
  • Author
  • Model page created by Alessandro De Poi. See "Data change" for further contributors.
