S28; Magnadyne Radio; (ID = 383073) Radio

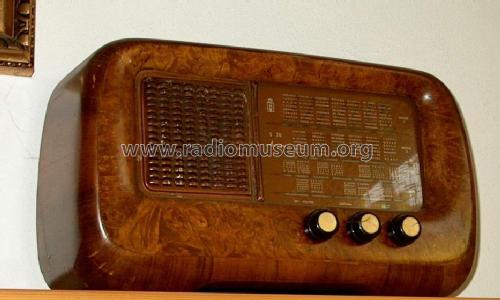

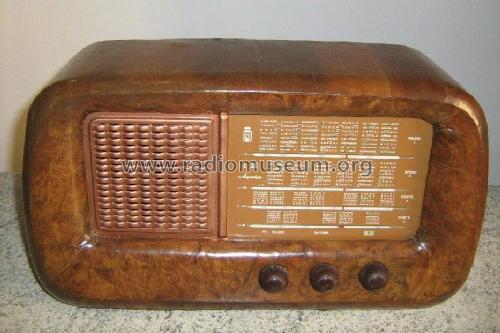

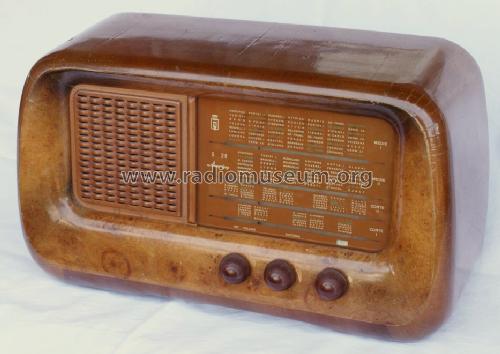

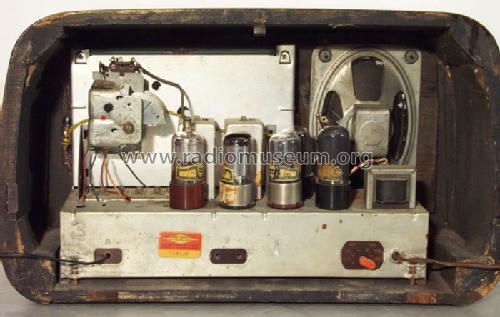

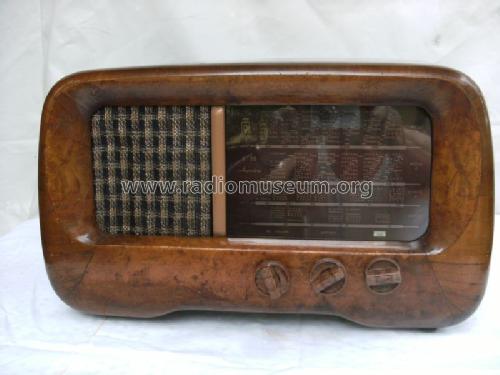

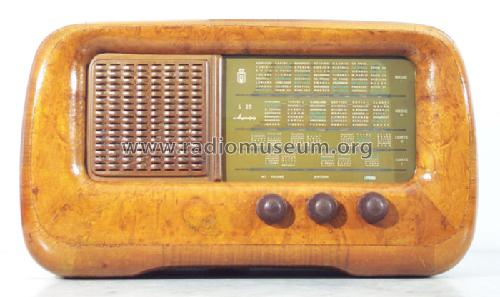

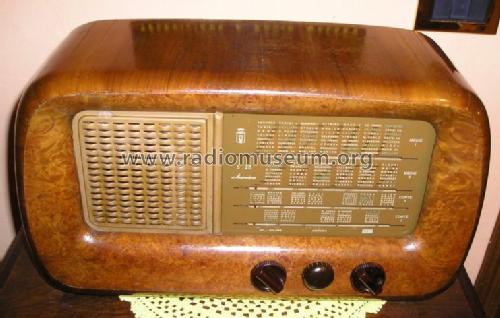

Magnadyne Radio;: S28 [Radio] ID = 383073 933x622
Select picture or schematic to display from thumbnails on the right and click for download.
For model S28, Magnadyne Radio; Torino

Country:  Italy
Manufacturer / Brand:  Magnadyne Radio; Torino
Year: 1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6TE8 6SK7GT 6SQ7GT 6V6 6X5
Main principle Superheterodyne (common); ZF/IF 471 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 175; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: S28 - Magnadyne Radio; Torino
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 430 x 250 x 180 mm / 16.9 x 9.8 x 7.1 inch
Notes

Caution: Hot chassis, not isolated from mains!

Gamme d'onda: 2 medie e 2 corte.
Wave bands: 2x BC, 2x SW.

Net weight (2.2 lb = 1 kg) 6 kg / 13 lb 3.5 oz (13.216 lb)
Source of data -- Schematic

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Magnadyne Radio; Torino
Here you find 333 models, 250 with images and 237 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
