Magnadyne Radio;: S34 [Radio] ID = 275532 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model S34, Magnadyne Radio; Torino

Country:  Italy
Manufacturer / Brand:  Magnadyne Radio; Torino
Year: 1946 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6TE8 6SK7 6SQ7 6V6 5Y3
Main principle Superheterodyne (common); ZF/IF 471 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 175; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 3 W (unknown quality)
from Radiomuseum.org Model: S34 - Magnadyne Radio; Torino
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes

Gamme d'onda: 2 OM, 2 OC.
Wave bands: 2 BC, 2 SW.

Autotrasformatore: Telaio collegato alla rete elettrica. Non tutti i casi sono dichiarati poichè spesso chi propone il modello non lo può sapere.

Source of data Collezione di Schemi, Scuola Radio Elettra 1953

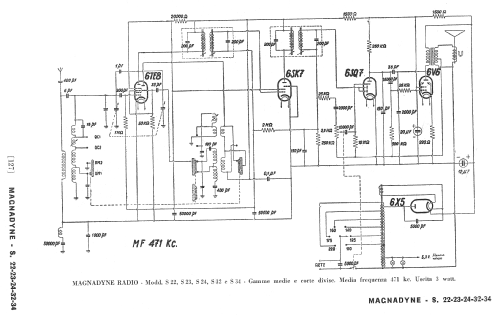

Mentioned in Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 127)

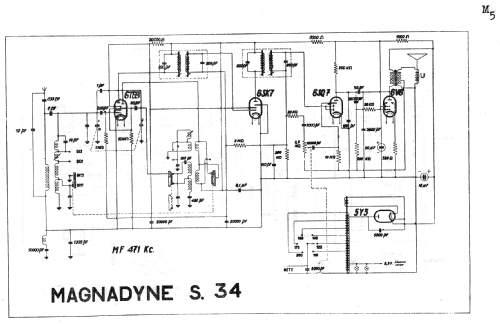

Literature/Schematics (1) Riparazioni - Scuola Radio Elettra (pag. M5)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
