SV40

SV40; Magnadyne Radio; (ID = 170549) Radio

SV40; Magnadyne Radio; (ID = 260662) Radio
SV40; Magnadyne Radio; (ID = 244122) Radio SV40; Magnadyne Radio; (ID = 244123) Radio
SV40; Magnadyne Radio; (ID = 1160003) Radio
Use red slider bar for more.
SV40; Magnadyne Radio; (ID = 244122) Radio

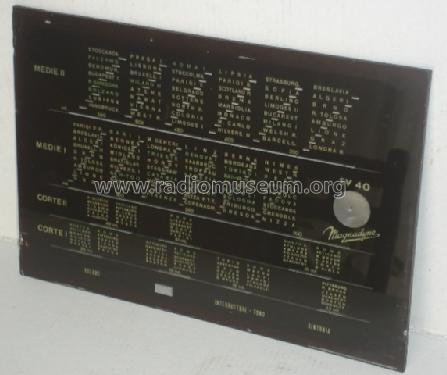

Magnadyne Radio;: SV40 [Radio] ID = 244122 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model SV40, Magnadyne Radio; Torino:
Mobile restaurato

Country:  Italy
Manufacturer / Brand:  Magnadyne Radio; Torino
Year: 1947 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6TE8 6K7 6Q7 6V6 5Y3 6E5
Main principle Superheterodyne (common); ZF/IF 471,5 kHz
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 155; 175; 235 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 4 W (unknown quality)
from Radiomuseum.org Model: SV40 - Magnadyne Radio; Torino
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 600 x 300 x 250 mm / 23.6 x 11.8 x 9.8 inch
Notes Gamme d'onda: 2 OM, corte e cortissime.
Wave bands: 2 BC, 2 SW. Il modello descritto ha le seguenti valvole: 6TE8GT (al posto di ECH4) 6K7 6Q7GT 6V6GT (al posto di EL3) 5Y3GT 6E5
Mentioned in Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 120)
Literature/Schematics (1) Riparazioni - Scuola Radio Elettra (pag. M12)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
