SV45

SV45; Magnadyne Radio; (ID = 168278) Radio

SV45; Magnadyne Radio; (ID = 175246) Radio

SV45; Magnadyne Radio; (ID = 252731) Radio

SV45; Magnadyne Radio; (ID = 1059739) Radio

SV45; Magnadyne Radio; (ID = 1537462) Radio
SV45; Magnadyne Radio; (ID = 273064) Radio SV45; Magnadyne Radio; (ID = 273066) Radio
SV45; Magnadyne Radio; (ID = 273065) Radio SV45; Magnadyne Radio; (ID = 273067) Radio
SV45; Magnadyne Radio; (ID = 273068) Radio SV45; Magnadyne Radio; (ID = 386920) Radio
SV45; Magnadyne Radio; (ID = 275533) Radio SV45; Magnadyne Radio; (ID = 383076) Radio
SV45; Magnadyne Radio; (ID = 260914) Radio SV45; Magnadyne Radio; (ID = 260915) Radio
Use red slider bar for more.
SV45; Magnadyne Radio; (ID = 273064) Radio

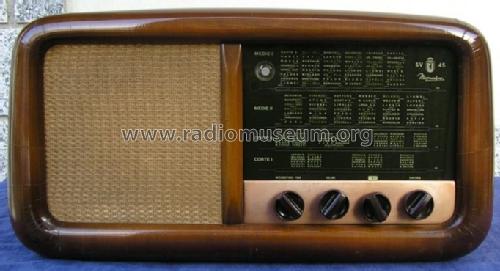

Magnadyne Radio;: SV45 [Radio] ID = 273064 682x370
Select picture or schematic to display from thumbnails on the right and click for download.
For model SV45, Magnadyne Radio; Torino:

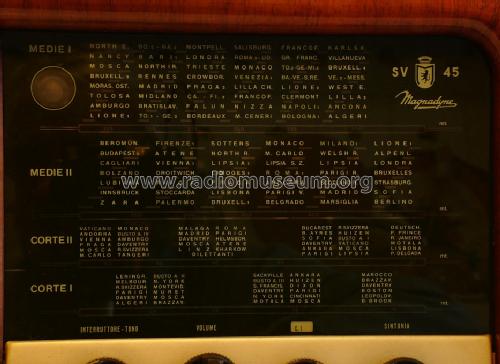

Foto per cortesia di Gabriele (venditore ebay gabri.g)

Country:  Italy
Manufacturer / Brand:  Magnadyne Radio; Torino
Year: 1950 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6TE8 6SK7 6SQ7 6V6 6E5 5Y3
Main principle Superheterodyne (common); ZF/IF 471,5 kHz
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 155; 175; 235 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 4 W (unknown quality)
from Radiomuseum.org Model: SV45 - Magnadyne Radio; Torino
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 560 x 290 x 200 mm / 22 x 11.4 x 7.9 inch
Notes

Gamme d'onda: 2 OM, 2 OC.
Wave bands: 2 BC, 2 SW.

Controllo di tono. Ingresso per giradischi.

Source of data Collezione di Schemi, Scuola Radio Elettra 1953
Mentioned in Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 121 e 129)
Literature/Schematics (1) Riparazioni - Scuola Radio Elettra (pag. M13)
