- Country
- Italy
- Manufacturer / Brand
- Magnadyne Radio; Torino
- Year
- 1945/1946
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 99275

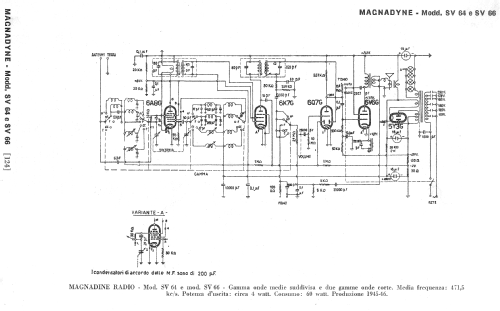

Click on the schematic thumbnail to request the schematic as a free document.

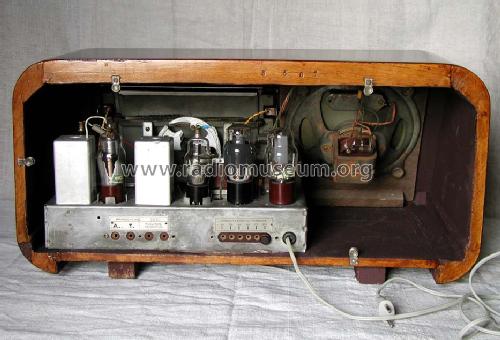

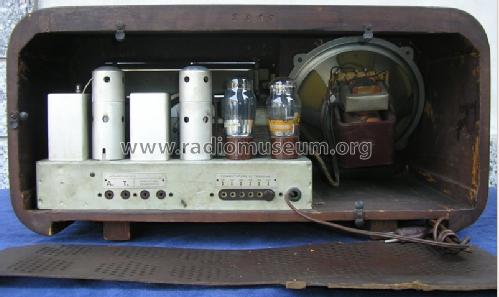

- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 471,5 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 140; 155; 175; 230 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 4 W (unknown quality)

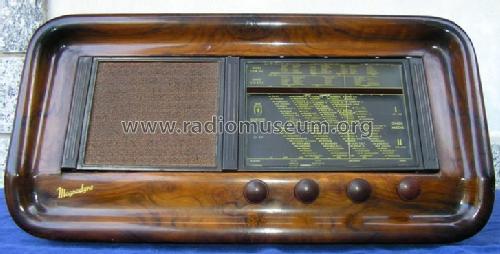

- Material
- Wooden case
- from Radiomuseum.org
- Model: SV66 - Magnadyne Radio; Torino
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 592 x 300 x 230 mm / 23.3 x 11.8 x 9.1 inch
- Notes
-
Gamme d'onda: medie divise e 2 gamme di onde corte.
Wave bands: 2x BC, 2x SW.La configurazione originale prevedeva come convertitrice la ECH4. La 6A8G con ovvia modifica del circuito è stata utilizzata sui telai con numeri di matricola dal 1601 al 2100.
- Literature/Schematics (1)
- Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 124)
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
