SV68

SV68; Magnadyne Radio; (ID = 256530) Radio
SV68; Magnadyne Radio; (ID = 1306237) Radio SV68; Magnadyne Radio; (ID = 1306239) Radio
SV68; Magnadyne Radio; (ID = 1306240) Radio SV68; Magnadyne Radio; (ID = 1306242) Radio
SV68; Magnadyne Radio; (ID = 1306243) Radio SV68; Magnadyne Radio; (ID = 1306244) Radio
Use red slider bar for more.
SV68; Magnadyne Radio; (ID = 1306237) Radio

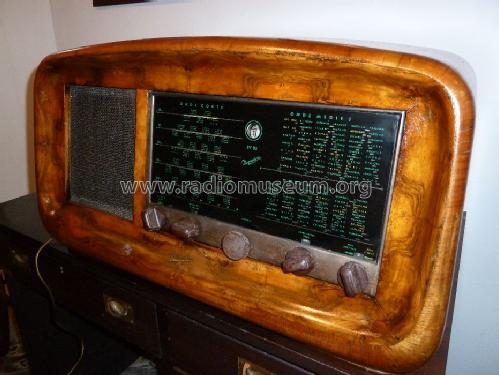

Magnadyne Radio;: SV68 [Radio] ID = 1306237 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model SV68, Magnadyne Radio; Torino

Country:  Italy
Manufacturer / Brand:  Magnadyne Radio; Torino
Year: 1941/1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: EF8 ECH3 6B8G or 6BN8G 6Q7G EM4 or WE12 EL6 5Z3
Main principle Superhet with RF-stage; ZF/IF 471,5 kHz
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 155; 175; 230 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: SV68 - Magnadyne Radio; Torino
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes

7 gamme d'onda: Onde Medie, Onde Lunghe, 5 gamme di Onde Corte espanse: 16 - 19 - 25 - 31 e 49 metri.
Controllo di tono continuo e commutatore Musica - Parola - Lontano. Presa per altoparlante supplementare.

Source of data Guida Pratica Antique Radio III (2000)
Mentioned in Il Radio Libro, (Ravalico) 8.Ed.
Literature/Schematics (1) Riparazioni - Scuola Radio Elettra (pag. M16)

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Magnadyne Radio; Torino
Here you find 338 models, 254 with images and 240 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
