SV76; Magnadyne Radio; (ID = 167001) Radio

SV76; Magnadyne Radio; (ID = 253019) Radio
SV76; Magnadyne Radio; (ID = 322020) Radio SV76; Magnadyne Radio; (ID = 322018) Radio
SV76; Magnadyne Radio; (ID = 322021) Radio SV76; Magnadyne Radio; (ID = 322019) Radio
SV76; Magnadyne Radio; (ID = 1196289) Radio SV76; Magnadyne Radio; (ID = 1281826) Radio
SV76; Magnadyne Radio; (ID = 1281830) Radio SV76; Magnadyne Radio; (ID = 1281832) Radio
SV76; Magnadyne Radio; (ID = 1401468) Radio SV76; Magnadyne Radio; (ID = 1401469) Radio
Use red slider bar for more.
SV76; Magnadyne Radio; (ID = 322020) Radio

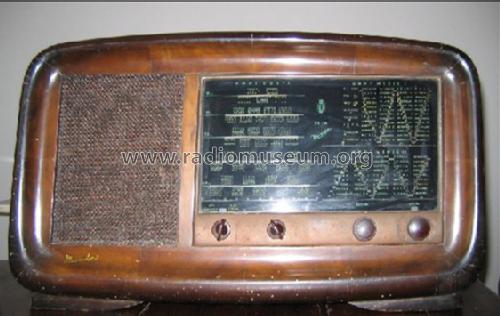

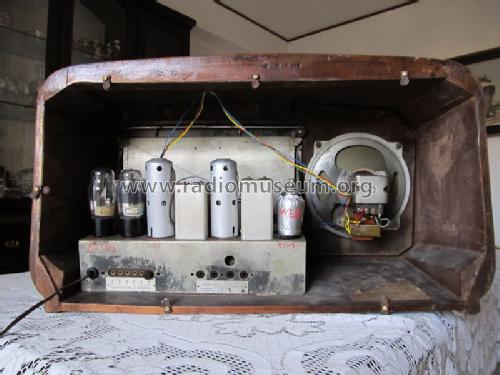

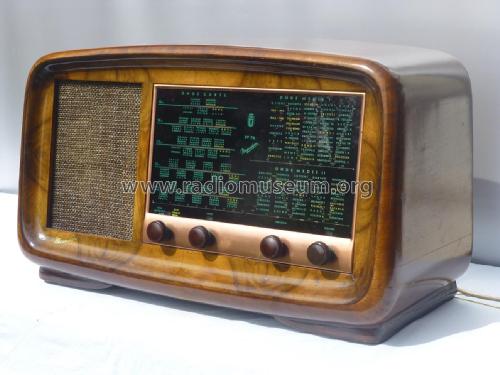

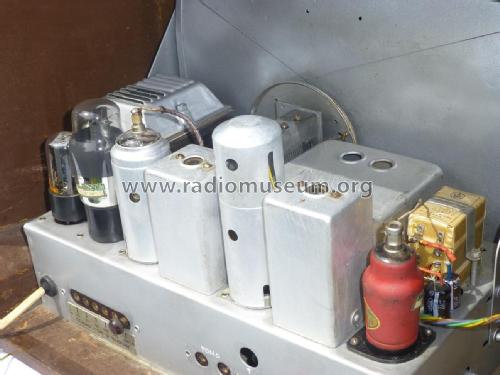

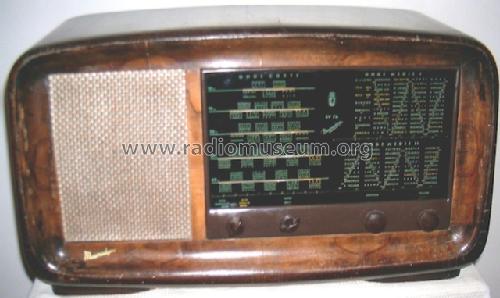

Magnadyne Radio;: SV76 [Radio] ID = 322020 886x531
Select picture or schematic to display from thumbnails on the right and click for download.
For model SV76 80, Magnadyne Radio; Torino

Country:  Italy
Manufacturer / Brand:  Magnadyne Radio; Torino
Year: 1940–1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH4 6K7G 6Q7G 6V6G 80
Main principle Superheterodyne (common); ZF/IF 471 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 155; 175; 225 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: SV76 [80] - Magnadyne Radio; Torino
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 632 x 370 x 285 mm / 24.9 x 14.6 x 11.2 inch
Notes

Gamme d'onda: 2 OM, 5 OC. Dispositivo Duotonal.
Wave bands: 2 BC, 5 SW.

Esiste una variante dove è installata la raddrizzatrice 5Y3 anzichè la 80.

Price in first year of sale 2'475.00 ITL
Source of data Guida Pratica Antique Radio III (2000)
Mentioned in Il Radio Libro, (Ravalico) 8.Ed.
Literature/Schematics (1) Riparazioni - Scuola Radio Elettra (pag. M17)

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Magnadyne Radio; Torino
Here you find 333 models, 250 with images and 237 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
