SV78; Magnadyne Radio; (ID = 1787057) Radio

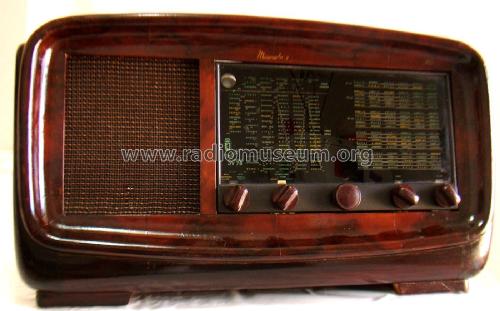

Magnadyne Radio;: SV78 [Radio] ID = 1787057 1400x873
Select picture or schematic to display from thumbnails on the right and click for download.
For model SV78, Magnadyne Radio; Torino

Country:  Italy
Manufacturer / Brand:  Magnadyne Radio; Torino
Year: 1940/1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: EF8 ECH3 6BN8G or 6B8 EL6 WE18 or EFM1 5Z3
Main principle Superhet with RF-stage; ZF/IF 471 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 155; 175; 230 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: SV78 - Magnadyne Radio; Torino
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes

Serie Eptaonda. Onde Lunghe, Onde Medie e 5 gamme espanse di Onde Corte: 49, 31, 25, 19 e 16 metri.

Commutatore tonalità con 8 posizioni:

  • 1 Alta fedeltà - Parola
  • 2 Alta fedeltà - Musica
  • 3 Alta fedeltà - Normale
  • 4-5 Selettività variabile
  • 6 Alta selettività - Normale
  • 7 Alta selettività - Musica
  • 8 Alta selettività - Parola
Price in first year of sale 2'475.00 ITL
Source of data Guida Pratica Antique Radio III (2000)
Mentioned in Listino Prezzi Magnadyne Maggio 1940
Literature/Schematics (1) -- Original-techn. papers.
Literature/Schematics (2) -- Schematic (La Riparazione degli Apparecchi Radio, Delforno - Colciago, Italy 1941)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
