FM207; Magnafon; Desio MB (ID = 891423) Radio
Magnafon; Desio MB: FM207 [Radio] ID = 891423 516x387
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM207, Magnafon; Desio (MB)

Country:  Italy
Manufacturer / Brand:  Magnafon; Desio (MB)
Year: 1960 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 UABC80 UL84 UY85
Main principle Superheterodyne (common)
Wave bands Broadcast, Short Wave plus FM or UHF.

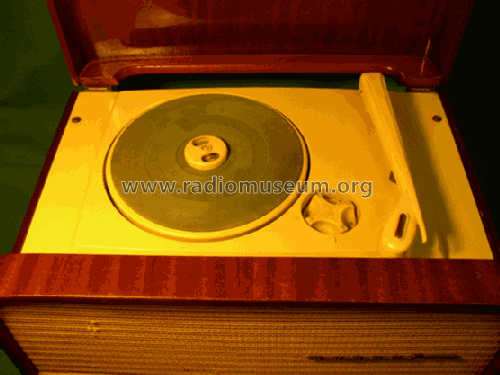

Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3 W (unknown quality)
from Radiomuseum.org Model: FM207 - Magnafon; Desio MB
Material Wooden case
Dimensions (WHD) 400 x 300 x 270 mm / 15.7 x 11.8 x 10.6 inch
Notes

Esiste sia come combinazione radiogrammofono che solo radio.

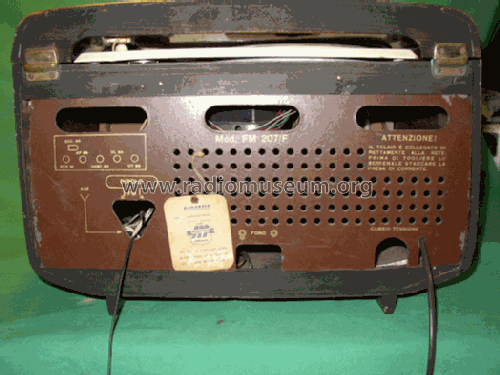

Attenzione! Telaio sotto tensione di rete!

Oltre a OM, OC e FM, aveva la possibilità di ricevere le trasmissioni audio dei canali TV VHF.

Model page created by Enrico Bonisolo. See "Data change" for further contributors.
