FM 215

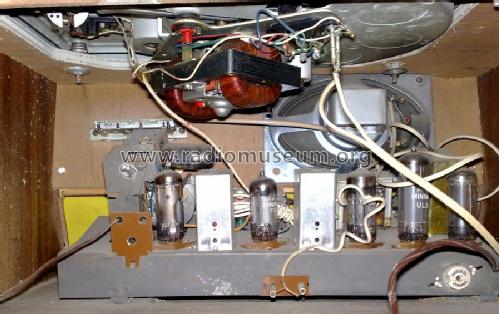

FM 215; Magnafon; Desio MB (ID = 829457) Radio FM 215; Magnafon; Desio MB (ID = 829458) Radio
FM 215; Magnafon; Desio MB (ID = 829459) Radio FM 215; Magnafon; Desio MB (ID = 1273183) Radio
FM 215; Magnafon; Desio MB (ID = 1564564) Radio FM 215; Magnafon; Desio MB (ID = 1564565) Radio
FM 215; Magnafon; Desio MB (ID = 1564566) Radio FM 215; Magnafon; Desio MB (ID = 1564567) Radio
FM 215; Magnafon; Desio MB (ID = 1564568) Radio
Use red slider bar for more.
FM 215; Magnafon; Desio MB (ID = 829457) Radio
Magnafon; Desio MB: FM 215 [Radio] ID = 829457 911x576
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM 215, Magnafon; Desio (MB):
Magnafon FM215 (foto per cortesia di R.Abenante)

Country:  Italy
Manufacturer / Brand:  Magnafon; Desio (MB)
Year: 1962 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 UABC80 UL84 UY85
Main principle Superheterodyne (common); ZF/IF 467/10700 kHz
Tuned circuits 5 AM circuit(s)     6 FM circuit(s)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 3.5 W (unknown quality)
from Radiomuseum.org Model: FM 215 - Magnafon; Desio MB
Material Wooden case
Shape Tablemodel, with any shape - general.
Notes Esiste anche in versione senza giradischi.
Source of data - - Data from my own collection

Model page created by Enrico Bonisolo. See "Data change" for further contributors.
