- Country
- United States of America (USA)
- Manufacturer / Brand
- Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
- Year
- 1952 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 354310

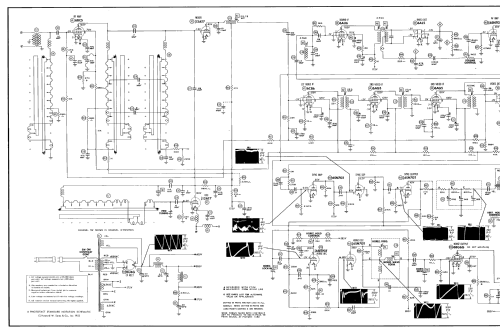

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 20
- Valves / Tubes
- 6BC5 12AT7 6CB6 6AG5 or 6BC5 6AG5 or 6BC5 6AL5 6CB6 6AU6 6AL5 6SN7GT 6V6GT 6SN7GT 6SN7GT 6C4 6V6GT 6BG6G 6W4GT 1B3GT 5U4G 17BP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 104 Series Ch= CT307 - Magnavox Co., Commercial
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
Magnavox model 104 Series is a 17” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis CT307, VHF tuner 700354G2 and picture tube 17BP4A.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 161, folder 4, dated 2-52)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
