• Year
  • 1956 ?
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 220616

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 12
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycle 110-120 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 40 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org

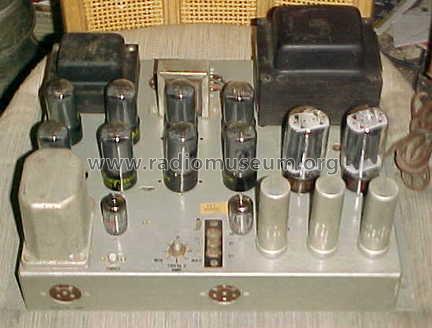

  • Model: AMP-148 - Magnavox Co., Commercial
  • Shape
  • Chassis only or for «building in»
  • Notes
  • Bi-Amping mono console power amplifier.
