• Country
• United States of America (USA)

• Manufacturer / Brand
• Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN

• Year
• 1952 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 355770

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 21

• Valves / Tubes
• 6BC5 12AT7 6CB6 6CB6 6BC5 or 6AG5 6AU6 6CB6 6AU6 6AU6 6T8 6V6GT 12AX7 6SN7GT 6SN7GT 6W6GT 6SN7GT 6BQ6GT 6W4GT 1B3GT 5U4G 20CP4

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Chassis CT332 - Magnavox Co., Commercial

• Shape
• Console with any shape - in general

• Notes

• Magnavox Chassis CT332 is a 20” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with VHF tuner 700357-20 and picture tube 20CP4.



• Literature/Schematics (1)

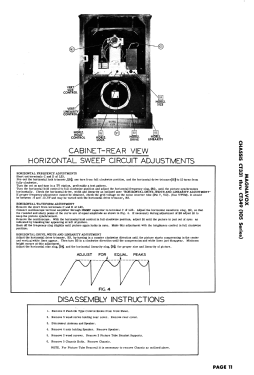

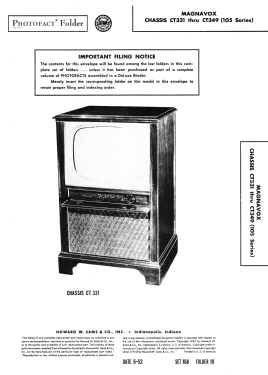

• Photofact Folder, Howard W. SAMS (Set 168, folder 10, dated 5-52)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
