LOM A

LOM A; Magnétic, Société G. (ID = 994438) Radio LOM A; Magnétic, Société G. (ID = 994439) Radio

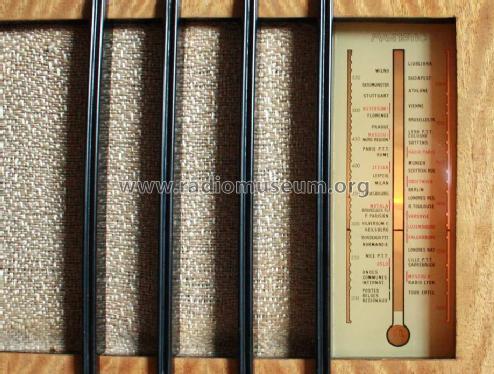

LOM A; Magnétic, Société G. (ID = 994440) Radio LOM A; Magnétic, Société G. (ID = 994441) Radio
Use red slider bar for more.

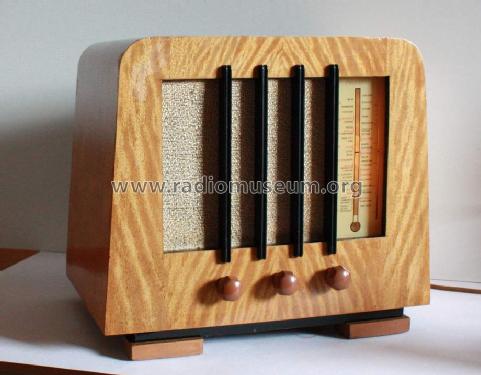

LOM A; Magnétic, Société G. (ID = 994438) Radio
Magnétic, Société G.: LOM A [Radio] ID = 994438 920x717
Select picture or schematic to display from thumbnails on the right and click for download.
For model LOM A, Magnétic, Société G.S.L.; Liège:
B_MAGNETIC_LOM A

Country:  Belgium
Manufacturer / Brand:  Magnétic, Société G.S.L.; Liège
Year: 1938 ? Category: Broadcast Receiver - or past WW2 Tuner

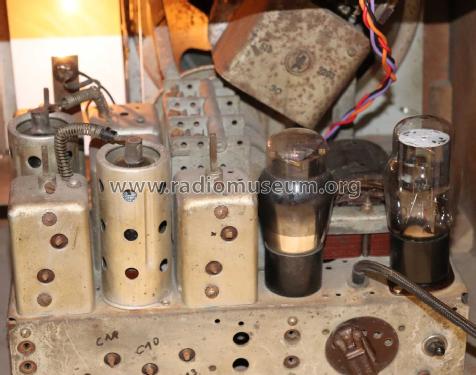

Valves / Tubes 4: 6A7 6B7 42 80
Main principle Superheterodyne (common); ZF/IF 123 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: LOM A - Magnétic, Société G.S.L.;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 380 x 350 x 275 mm / 15 x 13.8 x 10.8 inch
Notes Licence SBR-SEM frame same as 373A SBR
Net weight (2.2 lb = 1 kg) 9.5 kg / 20 lb 14.8 oz (20.925 lb)
Source of data - - Data from my own collection

Model page created by Georges Werts. See "Data change" for further contributors.



All listed radios etc. from Magnétic, Société G.S.L.; Liège
Here you find 8 models, 7 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
