• Year
  • 1970 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 344809

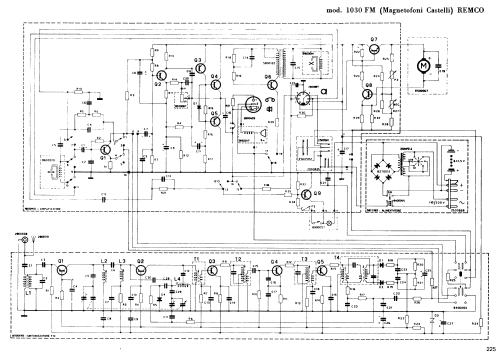

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • FM Broadcast Band Only
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line plus power jack, mostly with battery or storage battery / 110; 220 V / DC 12 V / C: 6 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
  • Power out
  • 1 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 1030FM - Magnetofoni Castelli - Remco;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 225 x 65 x 210 mm / 8.9 x 2.6 x 8.3 inch
  • Net weight (2.2 lb = 1 kg)
  • 1.4 kg / 3 lb 1.3 oz (3.084 lb)
  • Author
  • Model page created by Alessio Fantinato. See "Data change" for further contributors.
