S4000

S4000; Magnetofoni Castelli (ID = 1693388) R-Player
S4000; Magnetofoni Castelli (ID = 2042350) R-Player S4000; Magnetofoni Castelli (ID = 2042351) R-Player
S4000; Magnetofoni Castelli (ID = 2042352) R-Player S4000; Magnetofoni Castelli (ID = 2042353) R-Player
S4000; Magnetofoni Castelli (ID = 2042354) R-Player S4000; Magnetofoni Castelli (ID = 1245758) R-Player
S4000; Magnetofoni Castelli (ID = 1245759) R-Player S4000; Magnetofoni Castelli (ID = 1245761) R-Player
S4000; Magnetofoni Castelli (ID = 1262257) R-Player S4000; Magnetofoni Castelli (ID = 1971296) R-Player
Use red slider bar for more.
S4000; Magnetofoni Castelli (ID = 2042350) R-Player
Magnetofoni Castelli: S4000 [R-Player] ID = 2042350 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model S4000, Magnetofoni Castelli S.p.A. - Milano

Country:  Italy
Manufacturer / Brand:  Magnetofoni Castelli S.p.A. - Milano
Year: 1968 ? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 6: BC107 or. BC108 BC107 or. BC108 BC107 or. BC108 AC125 AC187 AC188
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder

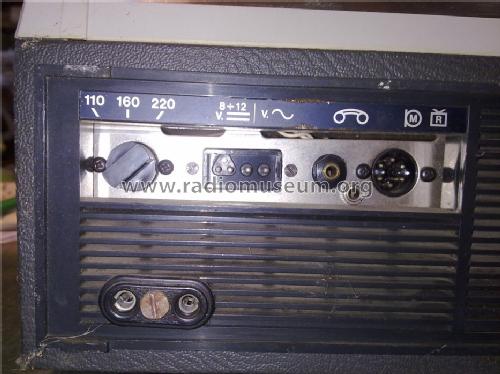

Power type and voltage Line plus power jack, mostly with battery or storage battery / 100-117; 160; 220 / 12 / 8 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: S4000 - Magnetofoni Castelli S.p.A. -
Material Modern plastics (no Bakelite or Catalin)
Dimensions (WHD) 330 x 140 x 260 mm / 13 x 5.5 x 10.2 inch
Notes

2 velocità, 9,5 - 4.75 cm/sec

Microfono con interruttore stop/avanti e presa per cuffie

Funzionamento a corrente alternata e, con apposito cavo a 12 V

Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)

Model page created by Giovanni Carenini. See "Data change" for further contributors.
