• Country
• Italy

• Manufacturer / Brand
• Magnum Electronic; Forlì

• Year
• 1980

• Category
• RF (Radio Frequency-) Amplifier

• Radiomuseum.org ID
• 276136

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 6KD6 6KD6 6KD6 6KD6

• Number of Transistors
• 1

• Semiconductors
• 2N1711

• Main principle
• Radio Frequency Amplification only

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

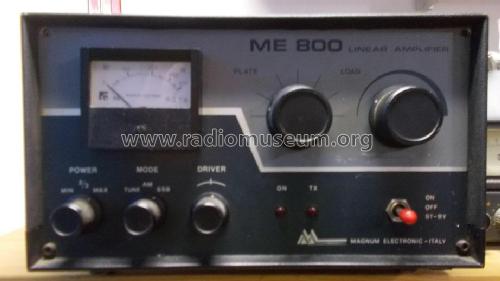

• Model: Linear Amplifier ME800 - Magnum Electronic; Forlì

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 280 x 150 x 350 mm / 11 x 5.9 x 13.8 inch

• Notes

• Frequenza di funzionamento da 25 a 32 MHz, in modo AM/SSB/CW/FM. Classe di funzionamento dell'amplificatore: AB. VSWR in ingresso: Minore di 1,5. Impedenza di ingresso: 52 Ω, di uscita da 40 a 80 Ω.
  Potenza di eccitazione 3 W per una uscita di 250 W in AM.
  Potenza di uscita; 250 W in AM; 600 W PeP in SSB.

• Net weight (2.2 lb = 1 kg)
• 20 kg / 44 lb 0.8 oz (44.053 lb)

• Mentioned in
• -- Original prospect or advert (CQ Elettronica, edizioni CD, numero 11/131 novembre 1977)

• Author
• Model page created by Gabriele Baldan. See "Data change" for further contributors.
