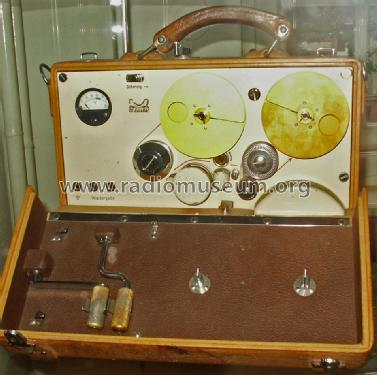

Reportofon MMK3

Reportofon MMK3; Maihak AG, H.; (ID = 326680) R-Player

Reportofon MMK3; Maihak AG, H.; (ID = 326681) R-Player

Reportofon MMK3; Maihak AG, H.; (ID = 1490932) R-Player

Reportofon MMK3; Maihak AG, H.; (ID = 1490933) R-Player

Reportofon MMK3; Maihak AG, H.; (ID = 1490935) R-Player

Reportofon MMK3; Maihak AG, H.; (ID = 1490936) R-Player

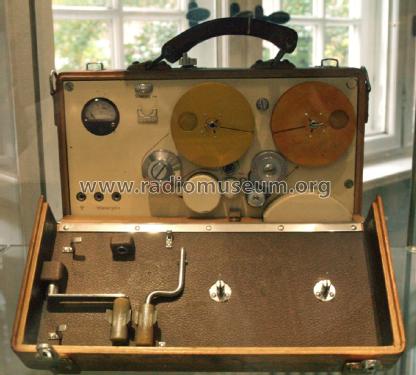

Reportofon MMK3; Maihak AG, H.; (ID = 2293876) R-Player Reportofon MMK3; Maihak AG, H.; (ID = 2294035) R-Player
Reportofon MMK3; Maihak AG, H.; (ID = 1055183) R-Player Reportofon MMK3; Maihak AG, H.; (ID = 1055184) R-Player
Reportofon MMK3; Maihak AG, H.; (ID = 1055212) R-Player Reportofon MMK3; Maihak AG, H.; (ID = 1055213) R-Player
Reportofon MMK3; Maihak AG, H.; (ID = 174056) R-Player Reportofon MMK3; Maihak AG, H.; (ID = 1055185) R-Player
Reportofon MMK3; Maihak AG, H.; (ID = 1055215) R-Player Reportofon MMK3; Maihak AG, H.; (ID = 1055216) R-Player
Use red slider bar for more.
Reportofon MMK3; Maihak AG, H.; (ID = 2293876) R-Player
Maihak AG, H.;: Reportofon MMK3 [R-Player] ID = 2293876 1196x1458
Select picture or schematic to display from thumbnails on the right and click for download.
For model Reportofon MMK3, Maihak AG, H.; Hamburg - Winterhude

Country:  Germany
Manufacturer / Brand:  Maihak AG, H.; Hamburg - Winterhude
Year: 1953–1955 Category: Sound/Video Recorder and/or Player
Valves / Tubes 3: DAF91 DAF91 DAF91
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Storage and/or dry batteries / 100 & 1,5 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Reportofon MMK3 - Maihak AG, H.; Hamburg -
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 320 x 240 x 115 mm / 12.6 x 9.4 x 4.5 inch
Notes Vollspur; Antrieb durch Federwerk; Bandgeschwindigkeit: 19 cm/s, Spulen-Ø 8,5 cm; Frequenzbereich 80...6000 Hz ± 2 dB.
Net weight (2.2 lb = 1 kg) 7.5 kg / 16 lb 8.3 oz (16.52 lb)
Source of data HdB d.Rdf-& Ferns-GrH 1953/54

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
