For model 130 Camera Style Radio, Majestic Radio & Television Co.,(post 1932)

Country:  United States of America (USA)
Manufacturer / Brand:  Majestic Radio & Television Co.,(post 1932)
Year: 1939 Category: Broadcast Receiver - or past WW2 Tuner

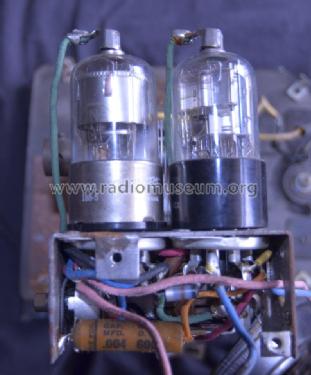

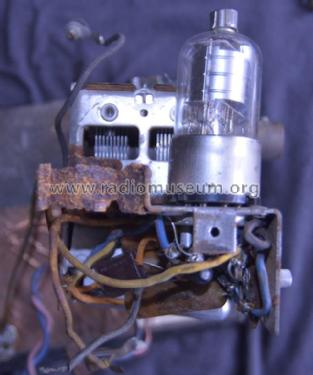

Valves / Tubes 3: 1A7GT 1N5GT 1D8GT
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 1.5 & 60 Volt
Loudspeaker Magnetic loudspeaker (reed) generic.
Power out
from Radiomuseum.org Model: 130 Camera Style Radio - Majestic Radio & Television Co
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 140 x 180 x 100 mm / 5.5 x 7.1 x 3.9 inch

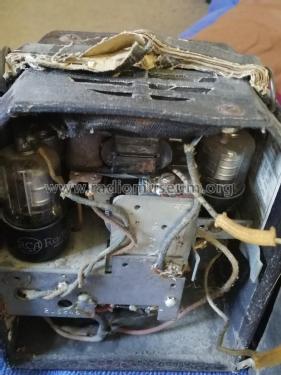

Notes Uses 60 Volt +B. (the 130U has a 45 V battery). Built in loop antenna. The 130 was marketed for a while in the UK...rebadged as MIGHTY GEM
Collectors' prices
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 11 = ca. 1940 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (1) Michael Brian Schiffer: The Portable Radio in American Life Riders 11-13
