Majestic 174

Majestic 174 ; Grigsby-Grunow - (ID = 1466906) Radio Majestic 174 ; Grigsby-Grunow - (ID = 2108896) Radio
Majestic 174 ; Grigsby-Grunow - (ID = 2108897) Radio Majestic 174 ; Grigsby-Grunow - (ID = 2108898) Radio
Majestic 174 ; Grigsby-Grunow - (ID = 1974690) Radio Majestic 174 ; Grigsby-Grunow - (ID = 1442614) Radio
Use red slider bar for more.

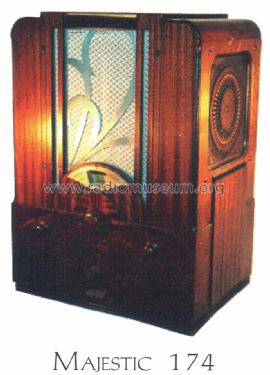

Majestic 174 ; Grigsby-Grunow - (ID = 1466906) Radio
Grigsby-Grunow -: Majestic 174 [Radio] ID = 1466906 933x1292
Select picture or schematic to display from thumbnails on the right and click for download.
For model Majestic 174, Grigsby-Grunow (-Hinds) Co. (Majestic pre 1933); Chicago (IL):
Image courtesy of Mark V. Stein for Radiomuseum.org use only. From Machine Age to Jet Age, Volume 2.

Country:  United States of America (USA)
Manufacturer / Brand:  Grigsby-Grunow (-Hinds) Co. (Majestic pre 1933); Chicago (IL)
Year: 1933 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 58S 2A7S 58S 55S 55S 2A5 80
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Majestic 174 - Grigsby-Grunow -Hinds Co.
Material Wooden case
Shape Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
Notes

The Grigsby-Grunow 174 is an AC operated 7 tube BC band receiver.  Has interval & station timer with motor tuning feature.

NOTE: Riders Vol. 5, pg. Grigsby-Grunow 5-3 calls out model 570. However the Riders service documentation is also applicable for this model.

Collectors' prices
Mentioned in Table Top Radios Vol. 1 Stein 98 (page 111.)
Literature/Schematics (1) Machine Age to Jet Age II (page 39.)
Literature/Schematics (2) Cathedral & Tombstone Radios (page 170.)
Literature/Schematics (3) Rider's Perpetual, Volume 5 = ca. 1934 and before (Riders Vol. 5, pg. Grigsby-Grunow 5-3)

Model page created by Noemi Erb. See "Data change" for further contributors.
