Majestic Ch= 210; Grigsby-Grunow - (ID = 262394) Radio

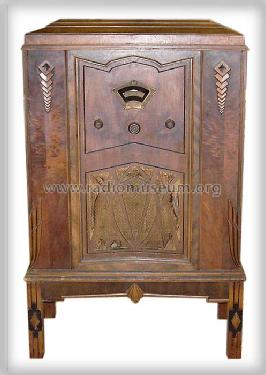

Grigsby-Grunow -: Majestic Ch= 210 [Radio] ID = 262394 498x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Majestic Ch= 210, Grigsby-Grunow (-Hinds) Co. (Majestic pre 1933); Chicago (IL):
Ebay Nr. 200035715407 Bild bearbeitet.

Country:  United States of America (USA)
Manufacturer / Brand:  Grigsby-Grunow (-Hinds) Co. (Majestic pre 1933); Chicago (IL)
Year: 1932 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: 35 35 27 35 35 2S 27 47 47 80
Main principle Superhet with RF-stage; ZF/IF 175 kHz; Screengrid 1926-1935
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Majestic Ch= 210 - Grigsby-Grunow -Hinds Co.
Notes Uses one or more spray shield tubes; push-pull af output stage; chassis 210 is employed in Whitehall, Stratford and Croydon models.
External source of data E. Erb 3-907007-36-0
Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.
Literature/Schematics (1) Rider's Perpetual, Volume 3 = 1933 and before


All listed radios etc. from Grigsby-Grunow (-Hinds) Co. (Majestic pre 1933); Chicago (IL)
Here you find 200 models, 118 with images and 154 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
