66 table model

66 ; Majestic Radio & (ID = 304319) Radio

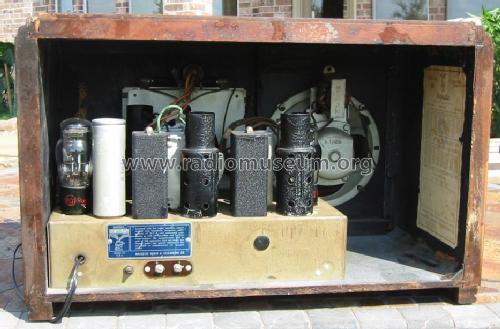

66 ; Majestic Radio & (ID = 870555) Radio 66 ; Majestic Radio & (ID = 870557) Radio
66 ; Majestic Radio & (ID = 870558) Radio 66 ; Majestic Radio & (ID = 540998) Radio
66 ; Majestic Radio & (ID = 1442478) Radio
Use red slider bar for more.
66 ; Majestic Radio & (ID = 870555) Radio
Majestic Radio &: 66 [Radio] ID = 870555 900x676
Select picture or schematic to display from thumbnails on the right and click for download.
For model 66 table model, Majestic Radio & Television Co.,(post 1932):
Majestic 66 Front View

Country:  United States of America (USA)
Manufacturer / Brand:  Majestic Radio & Television Co.,(post 1932)
Year: 1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6A8G 6K7G 6Q7G 6K6G 6G5 5Y3
Main principle Superheterodyne (common); ZF/IF 456 kHz
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 66 [table model] - Majestic Radio & Television Co
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes There is also an Auto Radio #66 !
External source of data Ernst Erb
Source of data Table Top Radios Vol. 1 Stein 98
Circuit diagram reference Rider's Perpetual, Volume 7 = 1936 and before
Mentioned in Table Top Radios Vol. 1 Stein 98
