80FMP2

80FMP2 ; Majestic Radio & (ID = 227139) Radio

80FMP2 ; Majestic Radio & (ID = 227140) Radio

80FMP2 ; Majestic Radio & (ID = 227141) Radio
Use red slider bar for more.
80FMP2 ; Majestic Radio & (ID = 227139) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Majestic Radio & Television Co.,(post 1932)
Year: 1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 12AT7 6BE6 6BA6 6BA6 6AL5 6AV6 6V6GT 5Y3GT
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
Power out
from Radiomuseum.org Model: 80FMP2 - Majestic Radio & Television Co
Shape Console with any shape - in general
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition

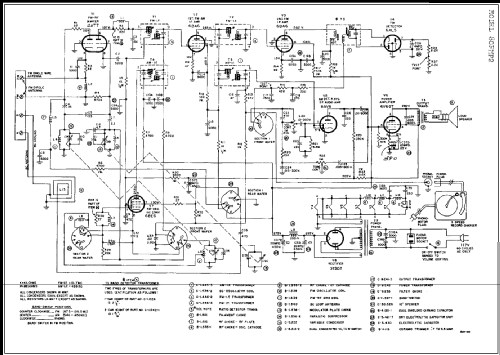

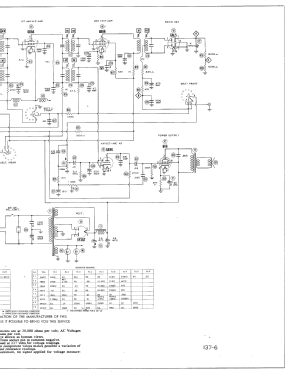

Circuit diagram reference Rider's Perpetual, Volume 22, covering 1951
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965


All listed radios etc. from Majestic Radio & Television Co.,(post 1932)
Here you find 333 models, 163 with images and 273 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
