86 ; Majestic Radio & (ID = 1279155) Radio
Majestic Radio &: 86 [Radio] ID = 1279155 933x602
Select picture or schematic to display from thumbnails on the right and click for download.
For model 86, Majestic Radio & Television Co.,(post 1932):

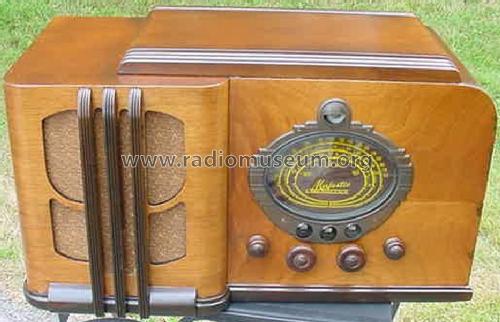

Ebay Seller: willeezwarez Item number: 251108728901 Majestic 86 Front View #1

Country:  United States of America (USA)
Manufacturer / Brand:  Majestic Radio & Television Co.,(post 1932)
Year: 1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 6A8G 6K7G 6Q7G 6C5G 6G5 6F6G 6F6G 5Y3
Main principle Superheterodyne (common); ZF/IF 456 kHz
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 86 - Majestic Radio & Television Co
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes Not to be confused with model Majestic 86 "Hyde Park" made by Grigsby -Grunow in 1931.
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 7 = 1936 and before
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (1) Machine Age to Jet Age II (Riders 7-3; 8-5, 6)
