Majestic Super-B Current Supply

Majestic Super-B Current Supply; Grigsby-Grunow - (ID = 928660) Power-S

Majestic Super-B Current Supply; Grigsby-Grunow - (ID = 407048) Power-S

Majestic Super-B Current Supply; Grigsby-Grunow - (ID = 407049) Power-S
Majestic Super-B Current Supply; Grigsby-Grunow - (ID = 285256) Power-S Majestic Super-B Current Supply; Grigsby-Grunow - (ID = 285893) Power-S
Majestic Super-B Current Supply; Grigsby-Grunow - (ID = 285894) Power-S Majestic Super-B Current Supply; Grigsby-Grunow - (ID = 940531) Power-S
Majestic Super-B Current Supply; Grigsby-Grunow - (ID = 1415377) Power-S Majestic Super-B Current Supply; Grigsby-Grunow - (ID = 2481298) Power-S
Majestic Super-B Current Supply; Grigsby-Grunow - (ID = 2495028) Power-S
Use red slider bar for more.
Majestic Super-B Current Supply; Grigsby-Grunow - (ID = 285256) Power-S
Grigsby-Grunow -: Majestic Super-B Current Supply [Power-S] ID = 285256 354x564
Select picture or schematic to display from thumbnails on the right and click for download.
For model Majestic Super-B Current Supply, Grigsby-Grunow (-Hinds) Co. (Majestic pre 1933); Chicago (IL)

Country:  United States of America (USA)
Manufacturer / Brand:  Grigsby-Grunow (-Hinds) Co. (Majestic pre 1933); Chicago (IL)
Year: 1926/1927 Category: Power supply/conditioner or battery or charger
Valves / Tubes 1: BH
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Majestic Super-B Current Supply - Grigsby-Grunow -Hinds Co.
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 130 x 230 x 250 mm / 5.1 x 9.1 x 9.8 inch
Notes Introduced March 1926; trademark used since Feb.22,1926. Goes together with Majestic A Current Supply.
Price in first year of sale 35.00 $
Mentioned in Radio Manufacturers of the 1920's, Vol. 2

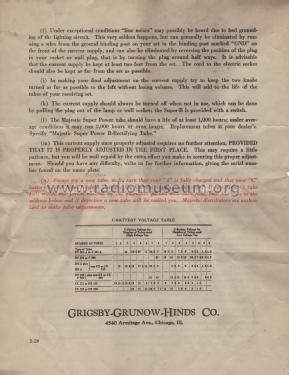

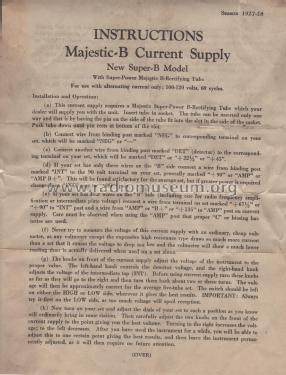

Literature/Schematics (2) Radio Broadcast, May 1926, p. 69

Model page created by Vitor Oliveira. See "Data change" for further contributors.
