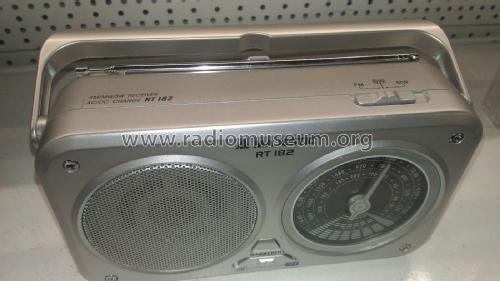

FM/MW/SW Receiver RT182

Majestic, New Majestic S.p.a.; Crema, CR

Data
Forum
Pictures
Collections

  • Year
  • 2005 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 284722

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Short Wave plus FM or UHF.
  • Power type and voltage
  • Line / Batteries (any type) / 230 / UM-3: 3 x 1,5 or UM-1: 3 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: FM/MW/SW Receiver RT182 - Majestic, New Majestic S.p.a.;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 208 x 120 x 625 mm / 8.2 x 4.7 x 24.6 inch
  • Notes

  • Frequency range:
    FM   87,5 -108 MHz
    MW: 525 - 1606 kHz -
    SW: 9.10 - 16.00 MMz

    interruttore backlight (scala di sintonia con luce di sottofondo) - antenna esterna telescopica  maniglia trasporto - commutatore FM/MW/SW - uscita per cuffia - funzione ricarica batterie

  • Net weight (2.2 lb = 1 kg)
  • 0.850 kg / 1 lb 14 oz (1.872 lb)
  • Author
  • Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
