- Country
- Australia
- Manufacturer / Brand
- Malvern Star (brand), Sydney
- Year
- 1946
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 267930

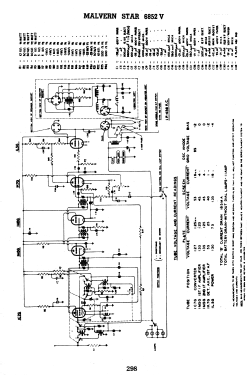

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
- Tuned circuits
- 8 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: 6852V - Malvern Star brand, Sydney
- Shape
- Tablemodel, with any shape - general.
- Notes
-
The chassis of this model is the same as that in the Airzone 6852V.
- Literature/Schematics (1)
- Australian Official Radio Service Manual Vol. 6 P298.
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
