For model Inconnu - Unknown 1, Manesse; Gent:
catawiki.de #19576193 seller Heron (F)

Country:  Belgium
Manufacturer / Brand:  Manesse; Gent
Year: 1939 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: EK3 EBF2 EL3 AZ1 EM4
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Inconnu - Unknown 1 - Manesse; Gent
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 570 x 1060 x 450 mm / 22.4 x 41.7 x 17.7 inch
Notes

This console features an Art Deco speaker grille in silver painted carved wood, signed by "G. VDM". It has space for a record player in the top section, which apparently was not originally equipped, or removed later.

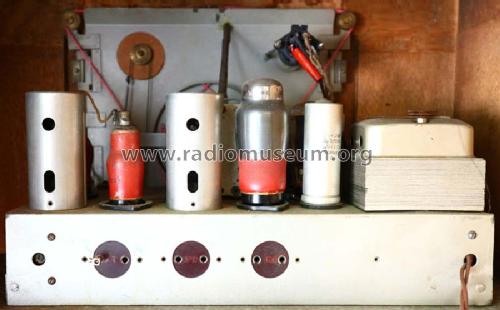

The radio chassis was made by Manesse, but we are currently not certain if the whole cabinet was built or offered by them, or if some other company used a Manesse chassis in their product.

For now we list this console under this manufacturer until we know more.

See also this model with a TRF chassis and no SW reception.

Model page created by Mark Hippenstiel. See "Data change" for further contributors.
