• Country
• United States of America (USA)

• Manufacturer / Brand
• Marantz (Sound United LLC); Vista, CA

• Year
• 1973

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 171243

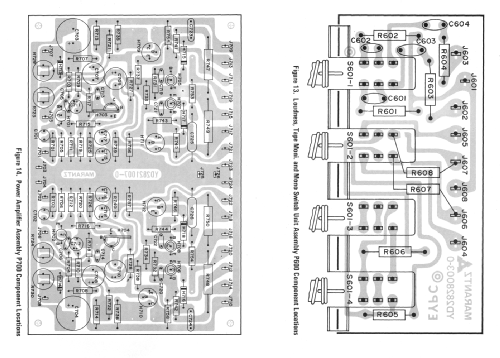

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 31

• Semiconductors
• 2SD217 2SD217 2SD217 2SD217

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 100-240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 60 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org
• Model: Console Stereo Amplifier 1060 - Marantz Sound United LLC;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 399 x 120 x 280 mm / 15.7 x 4.7 x 11 inch

• Notes
• Stereo Integrated Amplifier 30W RMS per channel at 0.5% THD.

• Net weight (2.2 lb = 1 kg)
• 18 lb (18 lb 0 oz) / 8.172 kg

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Víctor Caselli-Diaconescu. See "Data change" for further contributors.
