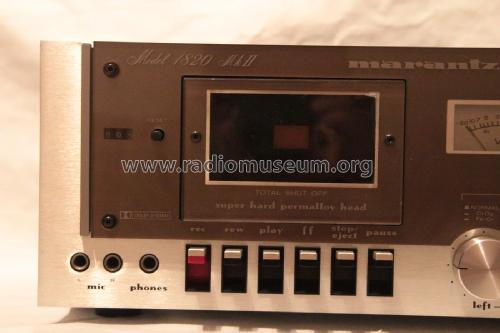

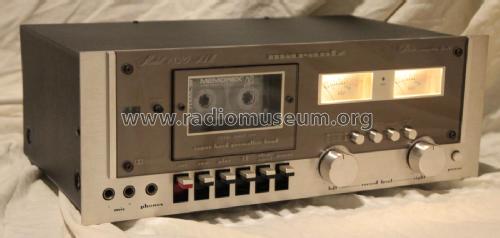

Stereo Cassette Deck 1820 MK2

Stereo Cassette Deck 1820 MK2; Marantz; Itasca (ID = 2248559) R-Player Stereo Cassette Deck 1820 MK2; Marantz; Itasca (ID = 2248556) R-Player
Stereo Cassette Deck 1820 MK2; Marantz; Itasca (ID = 2248557) R-Player Stereo Cassette Deck 1820 MK2; Marantz; Itasca (ID = 2248558) R-Player
Stereo Cassette Deck 1820 MK2; Marantz; Itasca (ID = 1820602) R-Player Stereo Cassette Deck 1820 MK2; Marantz; Itasca (ID = 1820603) R-Player
Stereo Cassette Deck 1820 MK2; Marantz; Itasca (ID = 1820604) R-Player Stereo Cassette Deck 1820 MK2; Marantz; Itasca (ID = 1820605) R-Player
Stereo Cassette Deck 1820 MK2; Marantz; Itasca (ID = 1820606) R-Player Stereo Cassette Deck 1820 MK2; Marantz; Itasca (ID = 1820607) R-Player
Use red slider bar for more.
Stereo Cassette Deck 1820 MK2; Marantz; Itasca (ID = 2248559) R-Player
Marantz; Itasca: Stereo Cassette Deck 1820 MK2 [R-Player] ID = 2248559 1400x667
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Cassette Deck 1820 MK2, Marantz; Itasca

Country:  United States of America (USA)
Manufacturer / Brand:  Marantz; Itasca
Year: 1978 Category: Sound/Video Recorder and/or Player
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Stereo Cassette Deck 1820 MK2 - Marantz; Itasca
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 416 x 146 x 242 mm / 16.4 x 5.7 x 9.5 inch
Notes

Loading system: Front
Motor(s) and type: DC Servo
Tape speed(s): 4.75 cm/s
Number of heads: 2
Peak indication system: 2 x Vumeters
Frequency response w/o Dolby:
   Normal: 40-12.5 Hz-kHz
   CrO2: 40-15 Hz-kHz
   FeCr: 30-16.5 Hz-kHz
Wow and flutter:
   DIN: 0.17%
   WRMS: 0.10%

Net weight (2.2 lb = 1 kg) 5.8 kg / 12 lb 12.4 oz (12.775 lb)

Model page created by Bartosz Szwed. See "Data change" for further contributors.



All listed radios etc. from Marantz; Itasca
Here you find 398 models, 392 with images and 73 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
