AM/FM Stereo Tuner 2020

AM/FM Stereo Tuner 2020; Marantz Sound United (ID = 446231) Radio AM/FM Stereo Tuner 2020; Marantz Sound United (ID = 446232) Radio
AM/FM Stereo Tuner 2020; Marantz Sound United (ID = 548671) Radio
Use red slider bar for more.

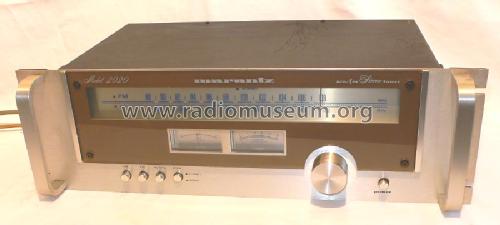

AM/FM Stereo Tuner 2020; Marantz Sound United (ID = 446231) Radio
Marantz Sound United: AM/FM Stereo Tuner 2020 [Radio] ID = 446231 900x405
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM/FM Stereo Tuner 2020, Marantz (Sound United LLC); Vista, CA

Country:  United States of America (USA)
Manufacturer / Brand:  Marantz (Sound United LLC); Vista, CA
Year: 1978 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 19:
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 120; 220; 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: AM/FM Stereo Tuner 2020 - Marantz Sound United LLC;
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 416 x 146 x 240 mm / 16.4 x 5.7 x 9.4 inch
Notes

A 2 band stereo hi-fi AM/FM tuner covering MW (525-1630kHz) and FM (87.5-108MHz). Optional rack fittings.

Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
Source of data - - Data from my own collection
Literature/Schematics (1) - - Manufacturers Literature (Service manual Marantz 2020/2050 dated 1978/9)

Model page created by Peter Böhm. See "Data change" for further contributors.
