2 Way Speaker System LD-20

2 Way Speaker System LD-20; Marantz Japan Inc; (ID = 1925261) Speaker-P 2 Way Speaker System LD-20; Marantz Japan Inc; (ID = 1925262) Speaker-P
2 Way Speaker System LD-20; Marantz Japan Inc; (ID = 1925263) Speaker-P
Use red slider bar for more.
2 Way Speaker System LD-20; Marantz Japan Inc; (ID = 1925261) Speaker-P
Marantz Japan Inc;: 2 Way Speaker System LD-20 [Speaker-P] ID = 1925261 1209x2100
Select picture or schematic to display from thumbnails on the right and click for download.
For model 2 Way Speaker System LD-20, Marantz Japan Inc; Sagamihara:
Marantz Katalog

Country:  Japan
Manufacturer / Brand:  Marantz Japan Inc; Sagamihara
Year: 1984 ? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: 2 Way Speaker System LD-20 - Marantz Japan Inc; Sagamihara
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 230 x 240 x 365 mm / 9.1 x 9.4 x 14.4 inch
Notes

Marantz 2-Way 2-Driver Loudspeaker System Model LD-20.
Mini Monitor Series
Bass Reflex System
Power Handling 60 Watts
Frequency Response: 40Hz to 22000Hz
Impedance: 8Ω
Sensitivity: 87dB/W/m
Detachable Grille
Rosewood Finish

Drivers:
Bass/Midrange 1 x 160mm cone
Tweeter: 1 x 25mm

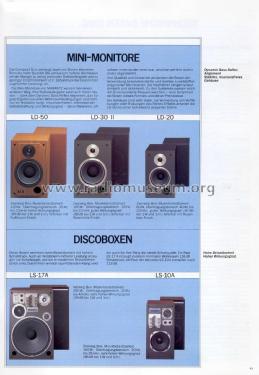

Mentioned in -- Original prospect or advert (Marantz HiFi-Video 1985-86)

Model page created by Franz Scharner. See "Data change" for further contributors.
