3 Way Speaker System DMS 350

3 Way Speaker System DMS 350; Marantz Sound United (ID = 1925141) Speaker-P 3 Way Speaker System DMS 350; Marantz Sound United (ID = 1925142) Speaker-P
3 Way Speaker System DMS 350; Marantz Sound United (ID = 1925143) Speaker-P 3 Way Speaker System DMS 350; Marantz Sound United (ID = 1925144) Speaker-P
Use red slider bar for more.

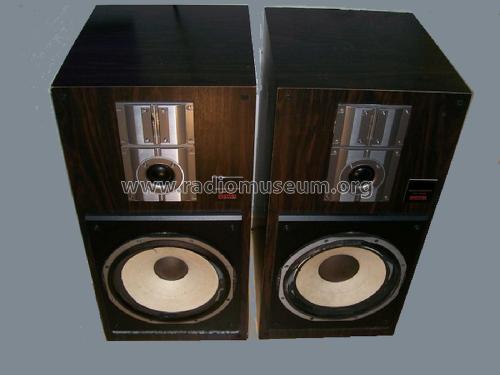

3 Way Speaker System DMS 350; Marantz Sound United (ID = 1925141) Speaker-P
Marantz Sound United: 3 Way Speaker System DMS 350 [Speaker-P] ID = 1925141 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model 3 Way Speaker System DMS 350, Marantz (Sound United LLC); Vista, CA:
Ebay Auction

Country:  United States of America (USA)
Manufacturer / Brand:  Marantz (Sound United LLC); Vista, CA
Year: 1984 ? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: 3 Way Speaker System DMS 350 - Marantz Sound United LLC;
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 380 x 750 x 420 mm / 15 x 29.5 x 16.5 inch
Notes

Marantz 3-Way 3-Driver Loudspeaker System Model DMS 350.
Power Handling 200 Watts
Frequency Response: 30Hz to 60000Hz
Impedance: 8Ω
Sensitivity: 91dB/W/m
Detachable Grille
Rosewood Finish

Drivers:
Bass: 1 x 300mm PPLC cone
Midrange: 1 x 38mm HPF dome
Tweeter: 1 x LDP ribbon

Mentioned in -- Original prospect or advert (Marantz HiFi-Video 1985-86)

Model page created by Franz Scharner. See "Data change" for further contributors.
