3 Way Speaker System HD-680

3 Way Speaker System HD-680; Marantz Sound United (ID = 1925160) Speaker-P 3 Way Speaker System HD-680; Marantz Sound United (ID = 1925161) Speaker-P
3 Way Speaker System HD-680; Marantz Sound United (ID = 1925162) Speaker-P
Use red slider bar for more.
3 Way Speaker System HD-680; Marantz Sound United (ID = 1925160) Speaker-P
Marantz Sound United: 3 Way Speaker System HD-680 [Speaker-P] ID = 1925160 1054x2100
Select picture or schematic to display from thumbnails on the right and click for download.
For model 3 Way Speaker System HD-680, Marantz (Sound United LLC); Vista, CA:
Marantz Katalog

Country:  United States of America (USA)
Manufacturer / Brand:  Marantz (Sound United LLC); Vista, CA
Year: 1984 ? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: 3 Way Speaker System HD-680 - Marantz Sound United LLC;
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 350 x 655 x 260 mm / 13.8 x 25.8 x 10.2 inch
Notes

Marantz 3-Way 3-Driver Loudspeaker System Model HD-680.
High Definition Series
Bass Reflex System
Power Handling 120 Watts
Frequency Response: 40Hz to 20000Hz
Impedance: 8Ω
Sensitivity: 91dB/W/m
Detachable Grille
Rosewood Finish

Drivers:
Bass: 1 x 250mm cone
Midrange: 1 x 120mm cone
Tweeter: 1 x 70mm cone

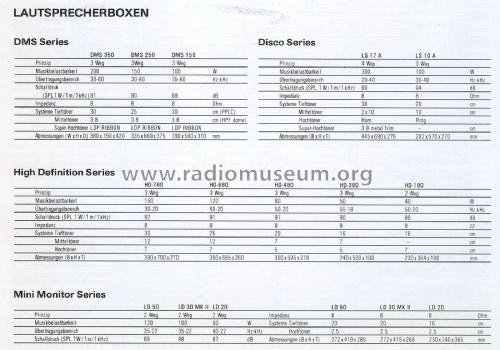

Mentioned in -- Original prospect or advert (Marantz HiFi-Video 1985-86)
