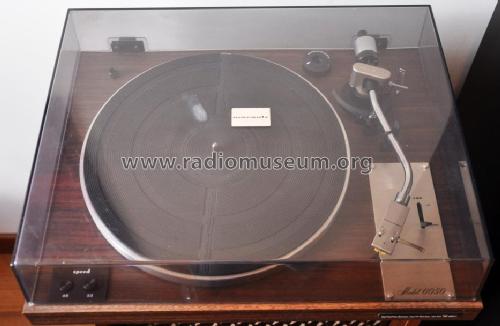

Marantz; Itasca: 6050 [R-Player] ID = 2344218 933x900
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1978 ? | Category: Sound/Video Recorder and/or Player |
| Main principle | Audio-Amplification |
|---|---|
| Wave bands | - without |
| Details | Record Player (not changer) |
| Power type and voltage | Alternating Current supply (AC) / 120 or 110-120/220-240 Volt |
| Loudspeaker | - For headphones or amp. |
| Power out | |
| from Radiomuseum.org | Model: 6050 - Marantz; Itasca |
| Material | Wooden case |
| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 450 x 153 x 350 mm / 17.7 x 6 x 13.8 inch |
| Notes | A two speed (33⅓ and 45 rpm) belt drive turntable complete with tonearm, and a 4 pole AC synchronous motor. Damped cueing and anti-skating. Versions
|
| Net weight (2.2 lb = 1 kg) | 13 lb (13 lb 0 oz) / 5.902 kg |
| Mentioned in | -- Original prospect or advert (1978 Catalogue) |
| Literature/Schematics (1) | - - Manufacturers Literature (Service manual model 6050/6110 turntable) |
Model page created by Howard Craven. See "Data change" for further contributors.
