• Country
• United States of America (USA)

• Manufacturer / Brand
• Marantz (Sound United LLC); Vista, CA

• Year
• 1980 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 250747

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 62 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

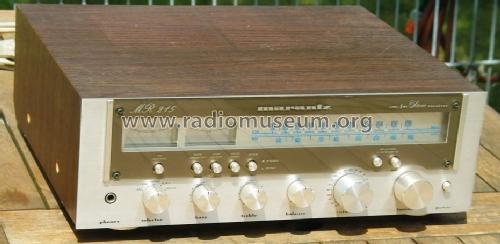

• Model: AM-FM Stereo Receiver MR215 - Marantz Sound United LLC;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 440 x 150 x 360 mm / 17.3 x 5.9 x 14.2 inch

• Notes

• AM-FM Stereo Receiver  MR215

  NF-Verstärker,Leistung 2x31 Watt

  41 stufige Lautstärkeregelung, 11 stufige Bass und Höhenregler

  Höhen und Tiefenfilter, Mono/Stereo-Schalter

  Anschlüsse:

  1 Phonoeingang, 2 Aux-Eingänge,

  1 Tape Eingang/Ausgang, 2 Lautsprecherpaare 4-16 Ohm, umschaltbar

  UKW-Empfindlichkeit 1µV

  2 Zeigerinstrumente für Feldstärke und Abstimmung

  Ferritantenne schwenkbar für Mittelwelle (AM)

  made in Japan,designed in USA

• Net weight (2.2 lb = 1 kg)
• 7 kg / 15 lb 6.7 oz (15.419 lb)

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by Reinhard Keins. See "Data change" for further contributors.
