AM/FM Cassette Receiver 4025 (L)

AM/FM Cassette Receiver 4025 ; Marantz Sound United (ID = 1295780) Radio AM/FM Cassette Receiver 4025 ; Marantz Sound United (ID = 732790) Radio
AM/FM Cassette Receiver 4025 ; Marantz Sound United (ID = 732791) Radio AM/FM Cassette Receiver 4025 ; Marantz Sound United (ID = 732794) Radio
AM/FM Cassette Receiver 4025 ; Marantz Sound United (ID = 732795) Radio AM/FM Cassette Receiver 4025 ; Marantz Sound United (ID = 732796) Radio
AM/FM Cassette Receiver 4025 ; Marantz Sound United (ID = 1295781) Radio AM/FM Cassette Receiver 4025 ; Marantz Sound United (ID = 1295782) Radio
AM/FM Cassette Receiver 4025 ; Marantz Sound United (ID = 2075908) Radio AM/FM Cassette Receiver 4025 ; Marantz Sound United (ID = 2075909) Radio
Use red slider bar for more.
AM/FM Cassette Receiver 4025 ; Marantz Sound United (ID = 1295780) Radio
Marantz Sound United: AM/FM Cassette Receiver 4025 [Radio] ID = 1295780 800x457
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM/FM Cassette Receiver 4025 (L), Marantz (Sound United LLC); Vista, CA

Country:  United States of America (USA)
Manufacturer / Brand:  Marantz (Sound United LLC); Vista, CA
Year: 1978 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Alternating Current supply (AC) / 110/220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 100 W (unknown quality)
from Radiomuseum.org Model: AM/FM Cassette Receiver 4025 - Marantz Sound United LLC;
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 570 x 146 x 380 inch / 14478 x 3708 x 9652 mm

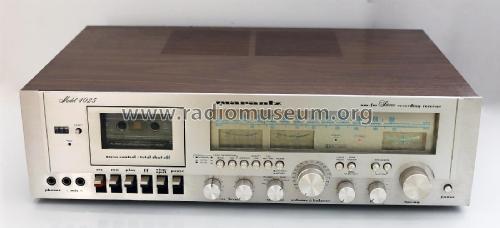

Notes Marantz AM/FM Cassette Receiver (Casseiver) 4025 consists of a receiver and a cassette tape deck. Rated output per channel: 51 watts @ 4Ω (DIN) or 40 watts @ 8Ω.
FM range: 87.5-108 MHz, AM range: 525-1605 kHz. Input selector, possible to choose speaker mode. Additional features: bass and treble controls, loudness control, signal strength level and FM tuning indicators, balance control, jack for headphones and microphones, counter, Dolby B NR System, Bias, EQ. Low filter. In a model 4025L available LW with a range: 150-350 kHz.
Net weight (2.2 lb = 1 kg) 15 kg / 33 lb 0.6 oz (33.04 lb)
Literature/Schematics (1) -- Original prospect or advert

Model page created by Gordon Bergjohann. See "Data change" for further contributors.
