AM/FM Stereo Tuner ST 25L
Use red slider bar for more.

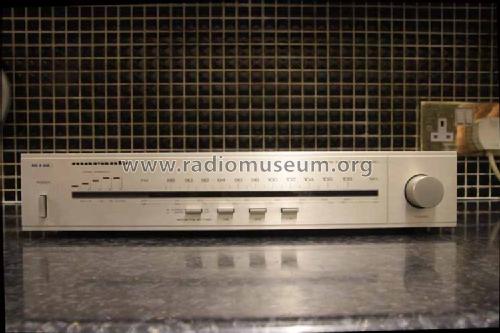

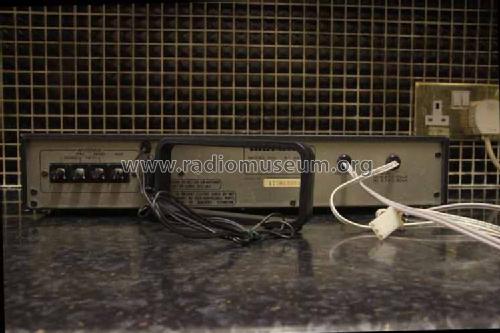

Marantz; Itasca: AM/FM Stereo Tuner ST 25L [Radio] ID = 1703123 750x500
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1978 ? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | Semiconductors present. |
|---|
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast, Long Wave and FM or UHF. |
| Details | |
| Power type and voltage | Powered by external power supply or a main unit. / 15,6 & 5,7 Volt |
| Loudspeaker | - For headphones or amp. |
| Power out | |
| from Radiomuseum.org | Model: AM/FM Stereo Tuner ST 25L - Marantz; Itasca |
| Material | Metal case |
| Shape | Book-shelf unit. |
| Dimensions (WHD) | 417 x 80 x 240 mm / 16.4 x 3.1 x 9.4 inch |
| Net weight (2.2 lb = 1 kg) | 2.6 kg / 5 lb 11.6 oz (5.727 lb) |
Model page created by Bartosz Szwed. See "Data change" for further contributors.
