Auto Return Direct Drive System Turntable TT2020

Auto Return Direct Drive System Turntable TT2020; Marantz; Itasca (ID = 2344064) R-Player Auto Return Direct Drive System Turntable TT2020; Marantz; Itasca (ID = 2344066) R-Player
Auto Return Direct Drive System Turntable TT2020; Marantz; Itasca (ID = 2344068) R-Player Auto Return Direct Drive System Turntable TT2020; Marantz; Itasca (ID = 2344069) R-Player
Auto Return Direct Drive System Turntable TT2020; Marantz; Itasca (ID = 2344072) R-Player Auto Return Direct Drive System Turntable TT2020; Marantz; Itasca (ID = 2344074) R-Player
Use red slider bar for more.

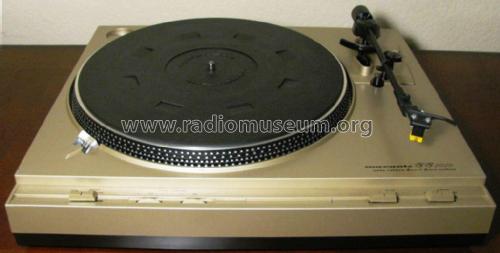

Auto Return Direct Drive System Turntable TT2020; Marantz; Itasca (ID = 2344064) R-Player
Marantz; Itasca: Auto Return Direct Drive System Turntable TT2020 [R-Player] ID = 2344064 1024x520
Select picture or schematic to display from thumbnails on the right and click for download.
For model Auto Return Direct Drive System Turntable TT2020, Marantz; Itasca:
Advert on Canuck Audio Mart Item #649272787 seller Hinnpower

Country:  United States of America (USA)
Manufacturer / Brand:  Marantz; Itasca
Year: 1982 ?? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 120 or 120/220 or 220 or 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Auto Return Direct Drive System Turntable TT2020 - Marantz; Itasca
Material Various materials
Shape Tablemodel, low profile (big size).
Notes

A two speed (33⅓ and 45 rpm) direct drive automatic return turntable with a DC servo motor complete with tonearm and MM cartridge. With strobe and speed adjustment, oil-damped cueing.

Versions
N     Europe (220v 50Hz)
T     England (240v 50Hz)
A     Australia (240v 50Hz)
C/U  North America (120v 60Hz)
E     General (110/220v 50/60Hz)
AE   General (110/220v 50/60Hz)

Literature/Schematics (1) - - Manufacturers Literature (Marantz manual model TT2200/TT2020 turntable)

Model page created by Howard Craven. See "Data change" for further contributors.
