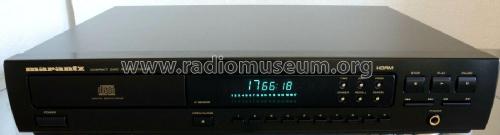

Compact Disc Player CD-63 74CD63 /01B /02B /05B front loader

Marantz (Sound United LLC); Vista, CA

Data
Forum
Pictures
Collections

  • Year
  • 1993
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 175300

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio)
  • Power type and voltage
  • Alternating Current supply (AC) / 110 or 120 or 220 or 230 or 240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Compact Disc Player CD-63 74CD63 /01B /02B /05B [front loader] - Marantz Sound United LLC;
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 420 x 86 x 300 mm / 16.5 x 3.4 x 11.8 inch
  • Notes

  • A stereo hi-fi compact disc player with remote control (RC-63CD). Analogue, digital optical and digital coaxial outputs. Jack for headphones. Philips CDM-12.1 laser mechanism, SM5872BS DAC.

    Specification
    Channels                          2 channels
    Sampling frequency           44.1 kHz
    Quantization                     16-bit linear/channel
    Error correction                 Cross-interleave read solomon code (CIRC)
    D/A conversion                  1-bit linear/channel
    Frequency range                5 Hz - 20 kHz
    Dynamic range                   > 96 dB
    S/N ratio                            > 104 dB
    Channel separation (1 kHz)  > 102 dB
    THD (1 kHz)                       0.0025 %
    Analog output level             2V RMS
                Impedance            200 ohms
    Digital output Coaxial         0.5 Vp-p/75 ohms
                        Optical         19 dBm

    Versions/Power Requirements
    /01B version   /  110-120/220-240V AC 50/60 Hz
    /02B version   /   230V AC 50 Hz
    /05B version   /   240V AC 50 Hz

    Suffix B denotes a black cabinet.

    See also the later Marantz CD-63 mk II front loader with a different DAC and mains transformer.

  • Net weight (2.2 lb = 1 kg)
  • 4.1 kg / 9 lb 0.5 oz (9.031 lb)
  • Source of data
  • - - Manufacturers Literature
  • Literature/Schematics (1)

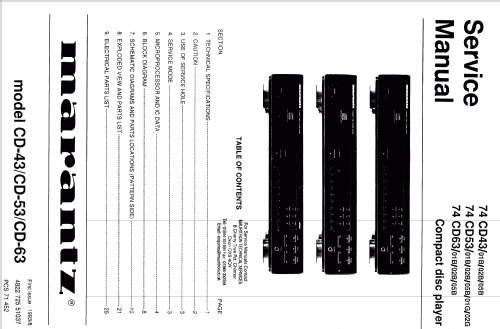

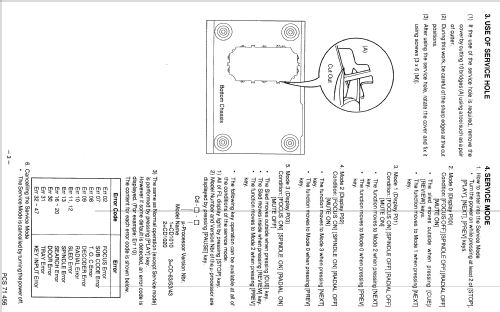

  • - - Manufacturers Literature (Service Manual 74CD63 /01B/02B/05B first issue 1993/8)
