CD Player CD7300

CD Player CD7300; Marantz Japan Inc; (ID = 2271996) R-Player CD Player CD7300; Marantz Japan Inc; (ID = 2271997) R-Player
CD Player CD7300; Marantz Japan Inc; (ID = 2271998) R-Player CD Player CD7300; Marantz Japan Inc; (ID = 2271999) R-Player
CD Player CD7300; Marantz Japan Inc; (ID = 2272002) R-Player CD Player CD7300; Marantz Japan Inc; (ID = 2272004) R-Player
Use red slider bar for more.
CD Player CD7300; Marantz Japan Inc; (ID = 2271996) R-Player
Marantz Japan Inc;: CD Player CD7300 [R-Player] ID = 2271996 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model CD Player CD7300, Marantz Japan Inc; Sagamihara:

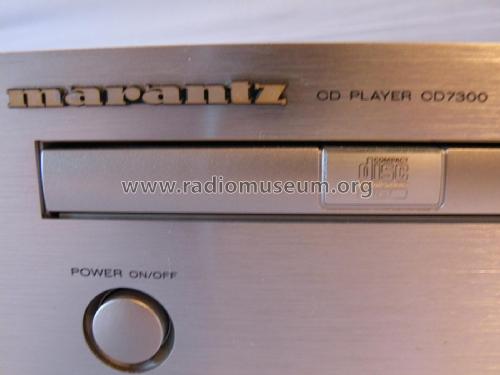

J_Marantz_CD-7300_vue de face_coll. William FAGUE

Country:  Japan
Manufacturer / Brand:  Marantz Japan Inc; Sagamihara
Year: 2003 ? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details CD-Player, -Writer, MD, MOD (audio)
Power type and voltage Alternating Current supply (AC) / see remarks: 100-230 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: CD Player CD7300 - Marantz Japan Inc; Sagamihara
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 440 x 89 x 317 mm / 17.3 x 3.5 x 12.5 inch
Notes

Frequency response: 2 Hz - 20 kHz
Channel separation: 100 dB (1 kHz)
Harmonic distortion: 0.0025% (1 kHz)

Audio output, headphone output, digital outputs coaxial and SPDIF.

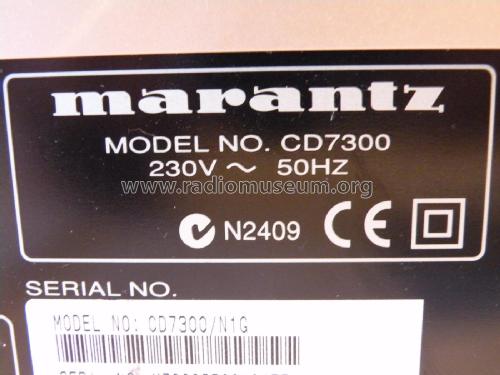

Different mains versions:
Version /C: 220 VAC, 60 Hz
Version /F: 100 VAC, 50/60 Hz
Version /K: 110/220 VAC, 50/60 Hz
Version /N: 230 VAC, 50 Hz
Version /S: 230 VAC, 50/60 Hz

Net weight (2.2 lb = 1 kg) 5.7 kg / 12 lb 8.9 oz (12.555 lb)
Mentioned in -- Original-techn. papers.

Model page created by William Fague. See "Data change" for further contributors.
