For model Stereo Console Amplifier 1030, Marantz (Sound United LLC); Vista, CA

Country:  United States of America (USA)
Manufacturer / Brand:  Marantz (Sound United LLC); Vista, CA
Year: 1973–1978 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 100; 120; 200; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 30 W (undistorted)
from Radiomuseum.org Model: Stereo Console Amplifier 1030 - Marantz Sound United LLC;
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 360 x 120 x 280 mm / 14.2 x 4.7 x 11 inch
Notes

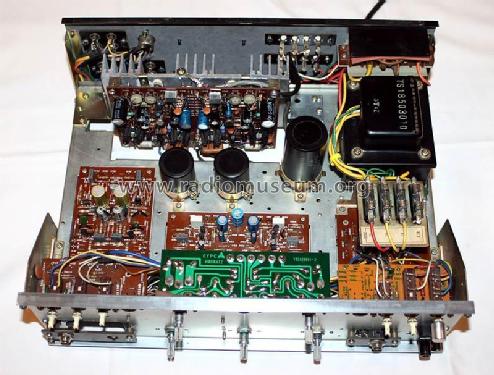

A hi-fi stereo integrated amplifier with power output of 15 watts RMS per channel into 8 ohms or 4 ohms, housed in a metal case (wooden case optional). With rotary controls for Bass, Treble, Balance and Volume, rotary Selector switch (Mic, Phono, Tape, Tuner, Aux), push button switches for Loudness, Tape Monitor, Mono, Hi Filter, Main Speakers, Remote Speakers, jacks for Headphones and Microphone. On the back, RCA phono sockets for Phono (MM), Tape, Aux, Tuner, for input/output Tape, a DIN socket for Tape Rec/Play, terminals for 2 pairs of loudspeakers (Main, Remote), 1 switched and 1 unswitched AC outlets.Some examples have connections to enable the preamplifier and power amplifier sections to be separated.

Specification
Rated continuous (RMS) power output
per channel, both channels driven
into 4Ω and 8Ω
15 Watts
Gain
  Phone (low level) to pre-amp output
  Phono to recording output
  High level to pre-amp output
54dB
37dB
17dB
Input ImpedancePhone 47kΩ
Microphone 47kΩ
High level input100kΩ
Input Sensitivity - Phono (low)2.1mV to equal 1V output at pre-amp out
Frequency Response20Hz-20KHz ±1dB at rated power output
Intermodulation DistortionLess than 0.5% at rated power output
from 40Hz-20kHz both channels driven
Total Harmonic DistortionLess than 0.5% at rated power output
40Hz-20kHz with both channels driven
Damping FactorGreater than 45 into 8Ω load
Total Noise - From magnetic phono input
to power amp output
Less than 1.5µV equivalent input
at rated output into 8Ω

Power Requirements : 100/120/200/220/240V AC50/60Hz with voltage selector

Power consumption, at rated output, both channels operating: 140 Watts

Designed in USA, Produced in Japan

Net weight (2.2 lb = 1 kg) 7.6 kg / 16 lb 11.8 oz (16.74 lb)
Source of data - - Data from my own collection
Mentioned in -- Original prospect or advert (1973 Marantz We Sound Better & 1978 Marantz Stereo-Verstarker catalogues)
Literature/Schematics (1) - - Manufacturers Literature (Service manual 1030)

Model page created by Carlos A. Pieroni-García. See "Data change" for further contributors.
