Console Stereo Amplifier Esotec Series PM-6

Console Stereo Amplifier Esotec Series PM-6; Marantz Sound United (ID = 2370135) Ampl/Mixer Console Stereo Amplifier Esotec Series PM-6; Marantz Sound United (ID = 2370136) Ampl/Mixer
Console Stereo Amplifier Esotec Series PM-6; Marantz Sound United (ID = 2370137) Ampl/Mixer Console Stereo Amplifier Esotec Series PM-6; Marantz Sound United (ID = 2370138) Ampl/Mixer
Console Stereo Amplifier Esotec Series PM-6; Marantz Sound United (ID = 2370139) Ampl/Mixer Console Stereo Amplifier Esotec Series PM-6; Marantz Sound United (ID = 2370140) Ampl/Mixer
Console Stereo Amplifier Esotec Series PM-6; Marantz Sound United (ID = 2370143) Ampl/Mixer Console Stereo Amplifier Esotec Series PM-6; Marantz Sound United (ID = 2370144) Ampl/Mixer
Use red slider bar for more.
Console Stereo Amplifier Esotec Series PM-6; Marantz Sound United (ID = 2370135) Ampl/Mixer
Marantz Sound United: Console Stereo Amplifier Esotec Series PM-6 [Ampl/Mixer] ID = 2370135 933x370
Select picture or schematic to display from thumbnails on the right and click for download.
For model Console Stereo Amplifier Esotec Series PM-6, Marantz (Sound United LLC); Vista, CA:
Sold on Hifido Japan item 15-01470-29523-00 seller Kyoto Shop

Country:  United States of America (USA)
Manufacturer / Brand:  Marantz (Sound United LLC); Vista, CA
Year: 1981 ? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 100 or 110 or 120 or 220 or 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 240 W (undistorted)
from Radiomuseum.org Model: Console Stereo Amplifier Esotec Series PM-6 - Marantz Sound United LLC;
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 416 x 146 x 332 mm / 16.4 x 5.7 x 13.1 inch
Notes

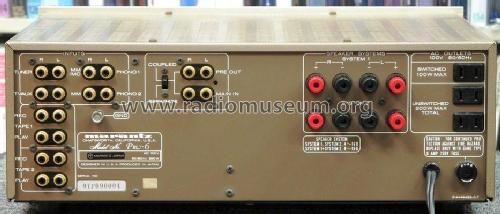

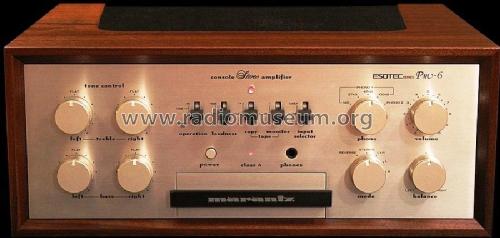

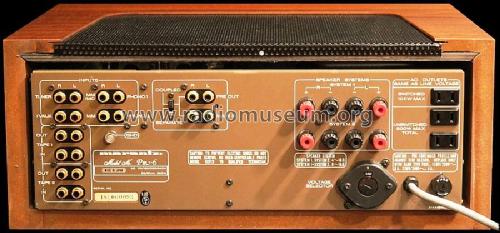

A stereo integrated amplifier in the Marantz 'Esotec Series' of hi-fi separates, in a metal case often housed in a wooden enclosure. Power output of 2 x 120 watts Class AB or 2 x 30 watts Class A. The preamplifier can be separated from the main amplifier via a switch on the back (Coupled, Separate). Input Sockets for Phono 1 (MM/MC), Phono 2 (MM), Tuner, TV/Aux, input/output sockets for 2 Tape recorders, sockets for Pre Out and Main In, terminals for 2 pairs of loudspeakers (System 1 and System 2) and three AC Outlets. On the front and under the flap, rotary controls for Left Treble, Right Treble, Left Bass, Right Bass, Volume and Balance, push buttons for Power, Speakers 1/2, Class A and Eq Subsonic, switches for Operation (Tone In/Out, Straight DC), Loudness, Tape Copy, Tape Monitor and Input Selector (Tuner, Phono, TV/Aux), rotary switches for Phono (Phono 1 (MC, MM 27kΩ/47kΩ/100kΩ impedances), Phono 2) and Mode (Reverse, Stereo, L&R, L, R). Jack for headphones.

Specification
Power Output per channel ................:  120 watts into 8Ω Class AB
(20Hz-20kHz both channels driven) .:  30 watts into 4Ω Class A
Power Bandwidth, 8Ω load................:  5Hz - 100kHz
Total Harmonic Distortion, 8Ω load ...:  0.015% (20Hz-20kHz)
Intermodulation Distortion, 8Ω load ..:  0.015%
Damping Factor 8Ω load ..................:  100
Input Sensitivity/Impedance :
                    Phono 1 MM .................:  2.5mV/27kΩ/47kΩ/100kΩ
                    Phono 1 MC .................:  125µV/75Ω
                    Phono 2 MM .................:  2.5mV/47kΩ
                                   Line ...............:  150mV/40kΩ
Frequency Response RIAA..............:   ± 0.2dB (20Hz-20kHz)
Signal to Noise ratio   MM.................:  86dB
  (IHF A Network)        MC.................:  68dB
                                   Line ...............:  110dB
Power Consumption .........................:  350 watts

Version/Power Requirements
100 V AC 50/60Hz (Japan)
110/120/220/240 V AC 50/60Hz with Voltage Selector

See also the later Marantz PM-6A Console Stereo Amplifier.

Made In Japan

Net weight (2.2 lb = 1 kg) 15.5 kg / 34 lb 2.3 oz (34.141 lb)
Mentioned in - - Manufacturers Literature (Esotec Series catalogue)
Literature/Schematics (1) - - Manufacturers Literature (Service Manual for the PM-6 Stereo Pre Main Amplifier)

Model page created by Howard Craven. See "Data change" for further contributors.
