Console Stereo Amplifier PM 310

Console Stereo Amplifier PM 310; Marantz Sound United (ID = 1691880) Ampl/Mixer Console Stereo Amplifier PM 310; Marantz Sound United (ID = 1691881) Ampl/Mixer
Console Stereo Amplifier PM 310; Marantz Sound United (ID = 1691882) Ampl/Mixer Console Stereo Amplifier PM 310; Marantz Sound United (ID = 2635202) Ampl/Mixer
Use red slider bar for more.

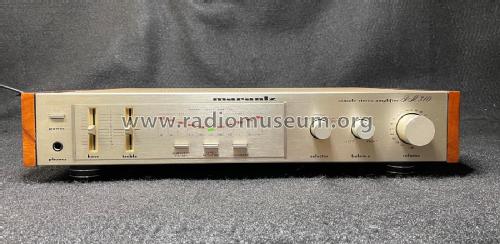

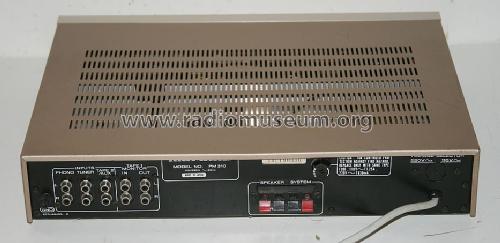

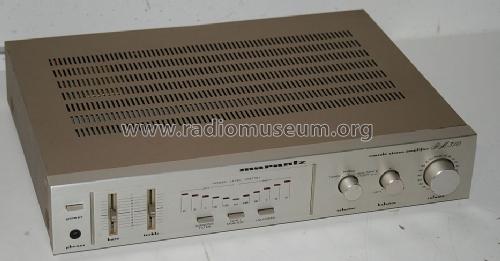

Console Stereo Amplifier PM 310; Marantz Sound United (ID = 1691880) Ampl/Mixer
Marantz Sound United: Console Stereo Amplifier PM 310 [Ampl/Mixer] ID = 1691880 933x439
Select picture or schematic to display from thumbnails on the right and click for download.
For model Console Stereo Amplifier PM 310, Marantz (Sound United LLC); Vista, CA

Country:  United States of America (USA)
Manufacturer / Brand:  Marantz (Sound United LLC); Vista, CA
Year: 1981 ? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 25 W (30 W max.)
from Radiomuseum.org Model: Console Stereo Amplifier PM 310 - Marantz Sound United LLC;
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 416 x 73 x 302 mm / 16.4 x 2.9 x 11.9 inch
Notes Marantz Console Stereo Amplifier Model PM310.
Bass-, Treble-Control, Peak Level Meter.
Inputs Phono, Tuner, Tape1, Tape2.
Design Champagne.
Net weight (2.2 lb = 1 kg) 4.8 kg / 10 lb 9.2 oz (10.573 lb)

Model page created by Franz Scharner. See "Data change" for further contributors.
