Digital Monitoring Amplifier PM-64 AVSS

Digital Monitoring Amplifier PM-64 AVSS; Marantz Japan Inc; (ID = 2009180) Ampl/Mixer Digital Monitoring Amplifier PM-64 AVSS; Marantz Japan Inc; (ID = 2009181) Ampl/Mixer
Digital Monitoring Amplifier PM-64 AVSS; Marantz Japan Inc; (ID = 2009182) Ampl/Mixer Digital Monitoring Amplifier PM-64 AVSS; Marantz Japan Inc; (ID = 2009183) Ampl/Mixer
Digital Monitoring Amplifier PM-64 AVSS; Marantz Japan Inc; (ID = 2009184) Ampl/Mixer Digital Monitoring Amplifier PM-64 AVSS; Marantz Japan Inc; (ID = 2009185) Ampl/Mixer
Digital Monitoring Amplifier PM-64 AVSS; Marantz Japan Inc; (ID = 2009186) Ampl/Mixer Digital Monitoring Amplifier PM-64 AVSS; Marantz Japan Inc; (ID = 2009187) Ampl/Mixer
Use red slider bar for more.
Digital Monitoring Amplifier PM-64 AVSS; Marantz Japan Inc; (ID = 2009180) Ampl/Mixer

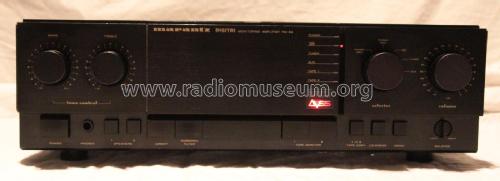

Marantz Japan Inc;: Digital Monitoring Amplifier PM-64 AVSS [Ampl/Mixer] ID = 2009180 1400x509
Select picture or schematic to display from thumbnails on the right and click for download.
For model Digital Monitoring Amplifier PM-64 AVSS, Marantz Japan Inc; Sagamihara

Country:  Japan
Manufacturer / Brand:  Marantz Japan Inc; Sagamihara
Year: 1985 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110 or 120 or 220 or 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 200 W (undistorted)
from Radiomuseum.org Model: Digital Monitoring Amplifier PM-64 AVSS - Marantz Japan Inc; Sagamihara
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 416 x 117 x 334 mm / 16.4 x 4.6 x 13.1 inch
Notes

A 2 x 100 watt stereo integrated amplifier with AVSS (Automatic Voltage Shift Supply), a circuit which enables the amplifier to respond instantaneously to the power demands of the wide dynamic range typical of digital recordings. Inputs for Phono (MM or MC), CD, Tuner, Aux, input/outputs for 2 Tape recorders and terminals for two pairs of loudspeakers. On the front, push buttons for Power, Speakers (1, 2), Direct,  Subsonic filter, Tape Monitor, Tape Copy, Loudness and Mono, rotary controls for Bass, Treble, Volume and Balance, and a rotary switch for Selector (Phono MC, Phono MM, CD, Tuner, Aux). Jack for headphones.

Power Output per channel .............:  100 watts rms into 8Ω (20Hz-20kHz)
                                                        :  100 watts rms into 4Ω (20Hz-20kHz)
Total Harmonic Distortion at 8Ω .....:  0.03% (20Hz - 20kHz)
Total Harmonic Distortion at 4Ω .....:  0.06% (20Hz - 20kHz)
Intermodulation Distortion ..............:  0.03%
Damping factor 8Ω (1 kHz) ............:  100
Input Sensitivity/Impedance :
                                   MM ..............:  2.5mV/47kΩ
                                   MC ..............:  250µV/100Ω
                                   Line .............:  150mV/27kΩ
Signal to Noise ratio   MM...............:  80dB (IHF A)
                                   Line .............:  90dB (IHF A)
Frequency Response Line..............:  10Hz - 30kHz
Output Voltage Tape Out ................:  435mV (Phono 1kHz 7.75mV Input)
Output Impedance Tape Out ..........:  560Ω/800Ω (Other/Phono)
Power Consumption .......................:  460 watts

Versions/Power Requirements
110/120/220/240 V AC 50/60Hz with Voltage Selector

See also the later Marantz PM-64II (Mk 2) Digital Monitoring Amplifier Quarter A AVSS model.



Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Mentioned in - - Manufacturers Literature (1985-6 Marantz Hi-Fi Video catalogue)
Literature/Schematics (1) - - Manufacturers Literature (Service Manual for the PM-64/PM-54 Stereo Pre-Main Amplifier)
